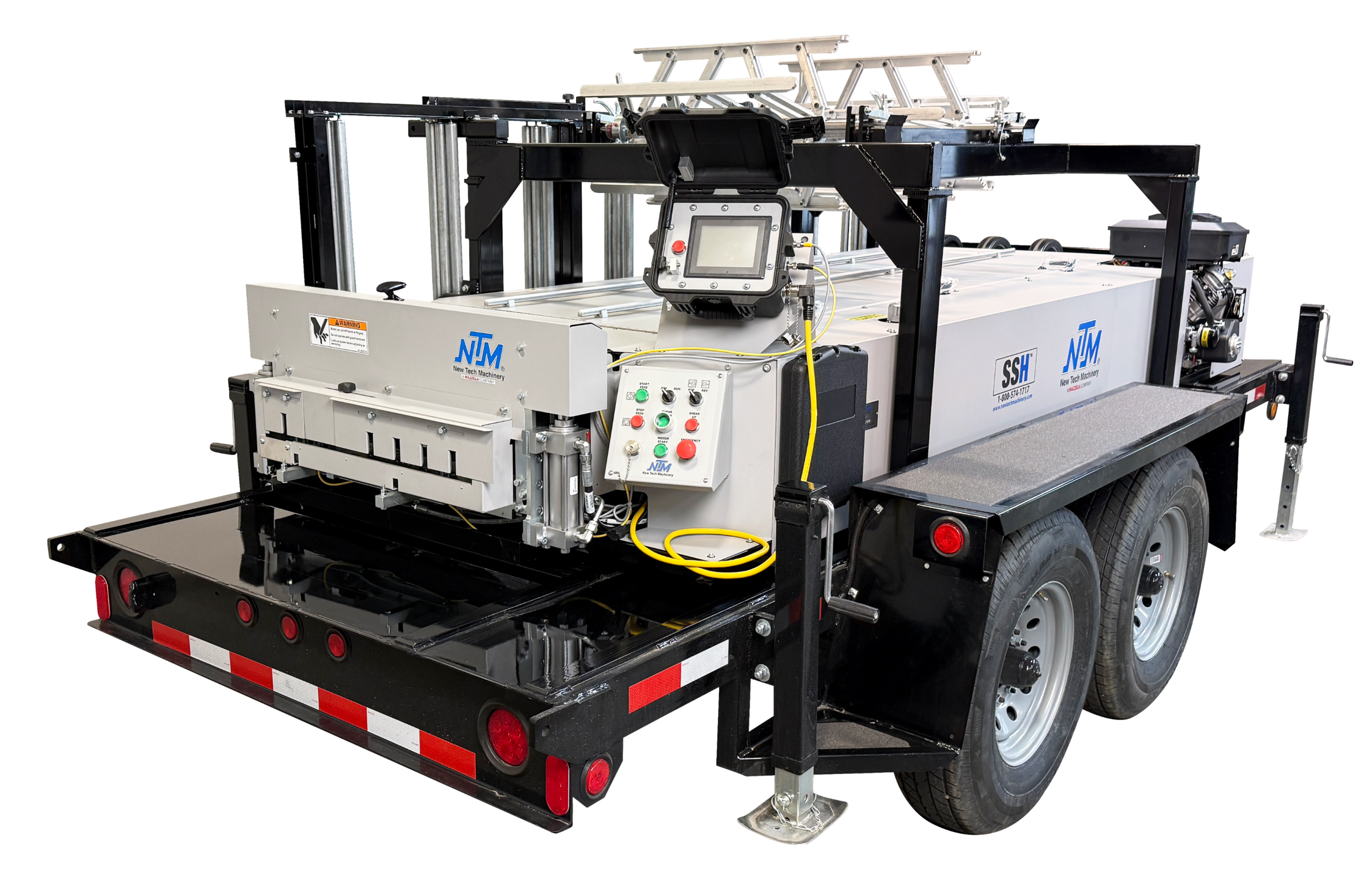

SSH MultiPro

Residential & light commercial machine

Open the manual

Panel Profiles:: 7
Max Speed:: 60 ft/min
Shear & Drive:: Hydraulic
Material Capacity:: 24 ga

Engineering Specs Plan View

Machine Footprint Open PDF

Frequently asked

How much does the SSH metal roof panel machine cost?

The SSH MultiPro starts at $71,600 with one profile included. Buyers who add a trailer, reel stand, and other accessories typically spend $94,000 or more. See the roof panel machine cost guide.

What profiles can the SSH produce?

The SSH produces 7 panel profiles including mechanical seam, snap-lock, snap-lock with slotted flange, and T-Panel options for residential and light commercial roofing. Clip relief and rib rollers are available as tooling options.

What's the difference between the SSH and SSQ3?

The SSQ3 produces 16 profiles (including wall panels) vs 7 for the SSH. The SSQ3 is built for high-volume commercial + residential work, while the SSH is focused on residential and light commercial.

Does the SSH include a controller?

Yes — the SSH includes a PLC Batch/Length Computerized Controller as standard equipment.

What warranty is included?

Limited three-year part and NTM in-house labor warranty.

How fast does the SSH run?

Up to 60 feet per minute on every power source.

What materials and gauges can the SSH run?

Painted steel from 28 to 24 gauge, painted aluminum from .027" to .040", 16 to 20 oz. copper, and 26 gauge terne-coat stainless steel. Coil widths run 14" to 24".

Does the SSH run on gas or electric power?

Both. The Quick-Change™ Power-Pack swaps between a 16 HP Briggs & Stratton gas engine and 5 HP or 7.5 HP electric motors.

How much does the SSH weigh?

The machine weighs 2,360 lbs. (1,070 kg). On its trailer it weighs 4,620 lbs. (2,090 kg).
