SSQ3™ MultiPro

16 Panel Profiles. One Machine.

The most advanced portable roof and wall panel machine we've ever built. Smarter, safer, and more efficient than ever.

Starting at $85K* *Base machine. Trailer sold separately. Final price depends on configuration.

Build & Quote See Specs
Panel Profiles
16
Tooling Changeover
25 min
Max Speed
75 ft/min
Avg. Savings
$2.25/sq ft

Inside the Machine

Built to Perform

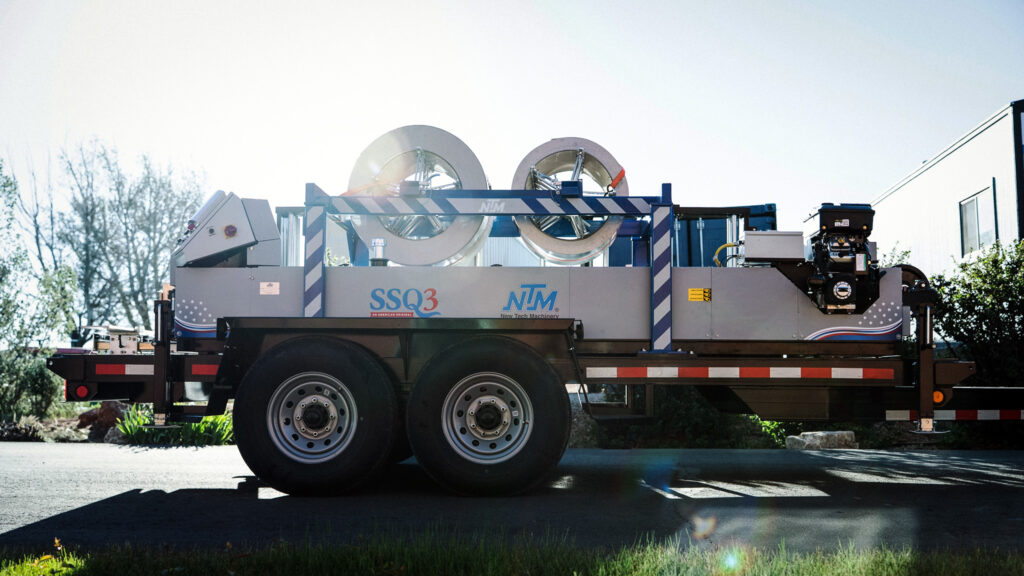

The Forming System

The Forming System

Precision Forming Panel After Panel

16 roller stations with hardened tool steel shear dies deliver consistent, accurate panel profiles at production speed.

  • 16 polyurethane drive rollers
  • Hydraulically powered shear with hardened tool steel blades
  • Panel recognition safety system

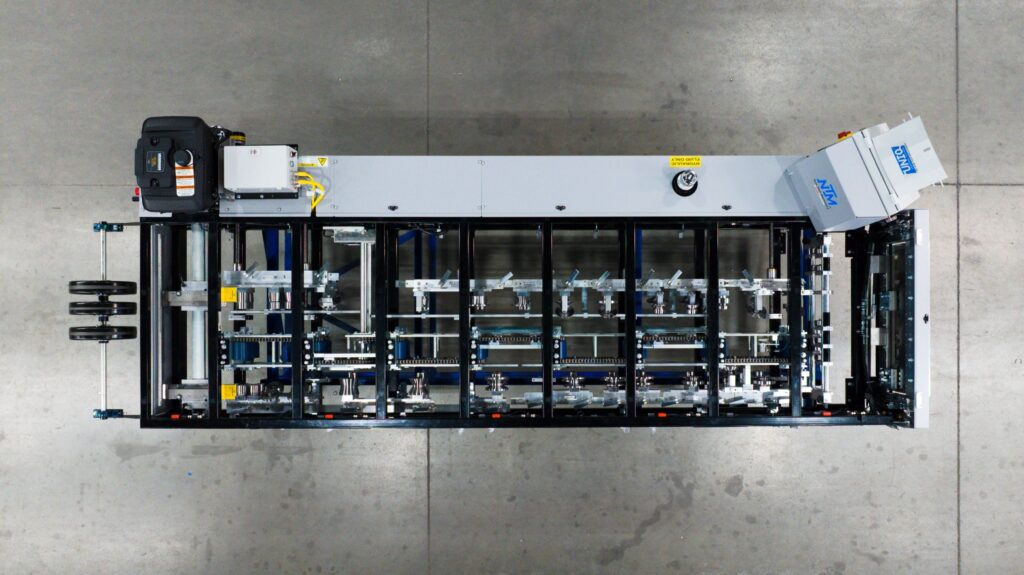

The Frame

The Frame

Built to Take a Beating

Welded tubular steel frame with powder-coated aluminum covers and inspection windows. Built for the job site, not the showroom.

  • 2830 lbs base weight
  • Welded tubular steel frame
  • Powder-coated aluminum covers with windows

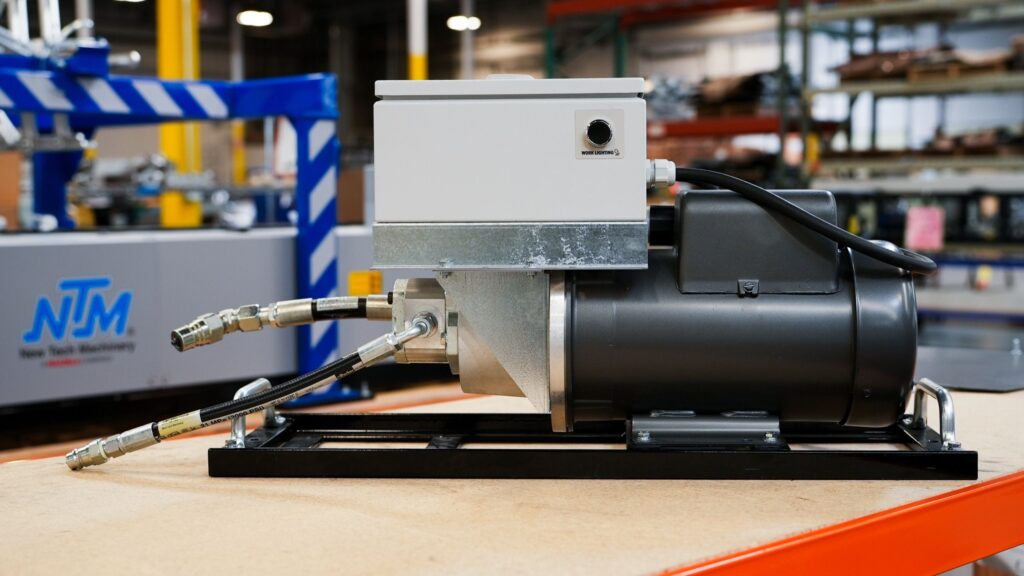

The Power Pack

The Power Pack

Gas or Electric. Your Call.

Quick-Change Power-Pack swaps between gas and electric in the field. No tools, no downtime.

  • 16 HP Briggs & Stratton gas engine
  • 5 HP or 7.5 HP electric motor options
  • Up to 75 ft/min production speed
The Brain

The Brain

Smart Controls Simple Operation

Choose manual push-button controls or the UNIQ Automatic Control System with touchscreen diagnostics.

  • UNIQ® Automatic Control System option
  • Push-button RUN/JOG at entry & exit ends

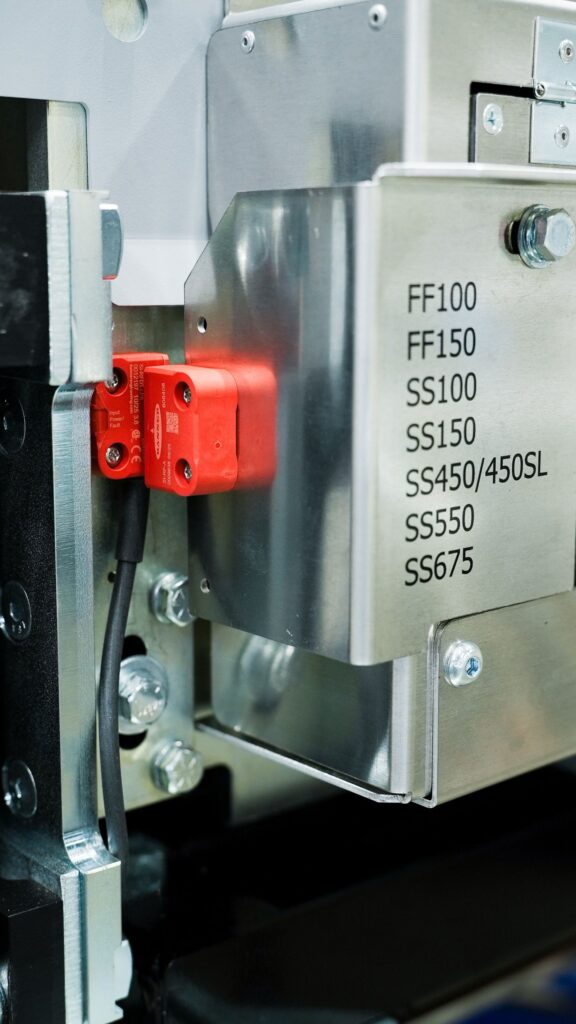

  • RFID cover sensors and on-controller diagnostics

Panel Profiles

Your Panels, Your Way

Every profile this machine forms, in the gauges and widths your jobs call for. Swipe through to see the full range.

Accessories

Complete Your Setup

The carts, covers, and add-ons built to run with this machine. Add what your crew needs to work faster on site.

Flush Wall Perforator - PR3-B

Flush Wall Perforator - PR3-B

$9,100.00
Roof Panel Machine Cart - CRT-PNL

Roof Panel Machine Cart - CRT-PNL

$8,300.00
Machine Cover - CVR-SSQ2

Machine Cover - CVR-SSQ2

$3,450.00
Hand seamer - HS2-1/HS2-2

Hand seamer - HS2-1/HS2-2

Strippable Protective Film Applicator

Strippable Protective Film Applicator

$2,100.00
Hot Melt System Interface - HMT-UNQ

Hot Melt System Interface - HMT-UNQ

$1,450.00
Trailer - TR12-D

Trailer - TR12-D

$19,650.00
Frame Assembly - RRF

Frame Assembly - RRF

$1,020.00
Hand Seamer - HS1-1/HS1-2

Hand Seamer - HS1-1/HS1-2

Dual Overhead Reel Rack - DR1

Dual Overhead Reel Rack - DR1

$3,500.00
Pencil, Bead, V and Striation Rollers - RR1 thru RR7

Pencil, Bead, V and Striation Rollers - RR1 thru RR7

$1,020.00
Single Free Standing De-Coiler - FSD1

Single Free Standing De-Coiler - FSD1

$2,900.00

Get it to the jobsite

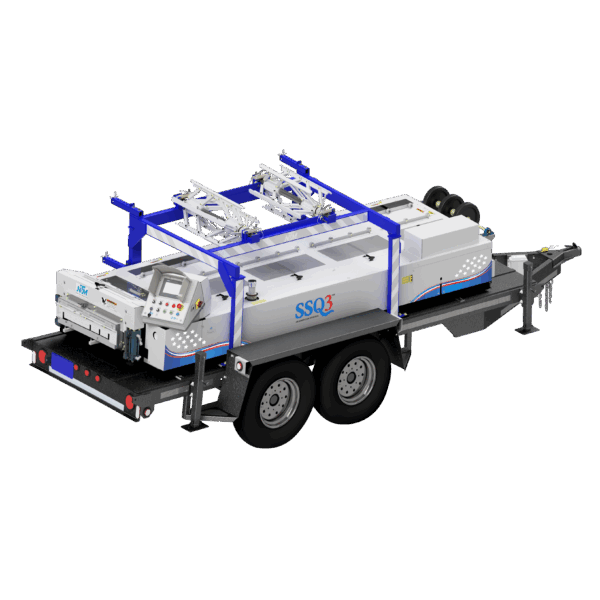

The Trailer Built for This Machine

The trailer is engineered around the machine, not adapted to it. Sold separately.

See the trailer lineup
TR12-D 12,000 lb · Tandem axle

NATM-compliant 12,000 lb tandem-axle trailer for towing any NTM roofing machine to the jobsite — crane lifting eyes, drop-foot jack stands, and electric brakes with breakaway kit.

Starting at $19,650
View
Engineering Specs
Machine / On Trailer

Machine Footprint

SSQ2 MACHINE FOOTPRINT
01 Machine
Length
14'4" (4.4m)
Width
5'2" (1.57m)
Height
4'3" (1.3m)
Weight
2,830 lbs. (1,280 kg)
w/ Slitter
15'4" (4.7m)
No Rack
2'6" (0.8m)
02 On Trailer
Length
18'11" (5.8m)
Width
7'2½" (2.2m)
Height
6'3" (1.9m)
Weight
5,090 lbs (2,300 kg)
Machine Footprint
Full PDF

Technical Specifications

Full Details

Every standard feature, dimension, and spec for this machine. Expand a section for the full breakdown.

Standard Features
  • 16 Polyurethane Drive Rollers
  • Roller System with Shear Dies
  • Hydraulic Drive & Shear
  • Powder-Coated Aluminum Covers with Windows
  • Welded Tubular Steel Frame
  • Push Button RUN/JOG Controls at Entry & Exit Ends
  • Power Interruption Safety Circuit
  • UL Rated Panels
  • Industry's Best Warranty
  • Quick-Change™ Power-Pack (Gas or Electric options)
  • One Pair of Bead, Pencil, Striation or V-Rib Rollers (choice of)
  • QWIKSwap™ tooling for faster changeovers
  • Cover windows for visual diagnostics
  • Shear warning strobe on the controller
  • RFID cover sensors and on-controller diagnostics
  • Zerk fittings for easy lubrication
  • Interior LED lights for increased visibility
Machine Dimensions

Machine

Length
14'4" (4.4m)
Length Slitter
15'4" (4.7m)
Width
5'2" (1.57m)
Height
4'3" (1.3m)
Height No Rack
2'6" (0.8m)
Weight
2,830 lbs. (1,280 kg)

On Trailer

Length
18'11" (5.8m)
Width
7'2½" (2.2m)
Height
6'3" (1.9m)
Weight
5,090 lbs (2,300 kg)
Performance Specs

Shear System

Hydraulic

  • Hydraulically Powered
  • Infinitely Adjustable
  • Hardened Tool Steel Blades & Shear Dies
  • Panel Recognition Safety System

Drive System

Hydraulic

  • 16 Polyurethane Drive Rollers
  • Hydraulically Driven via Chain Sprocket & Gear

Production Speed

Gas Engine
75 ft./min (23m/min)
3PH 60Hz Motor
72 ft./min (22m/min)
1PH 60Hz Motor
50 ft./min (15m/min)
3PH 50Hz Motor
58 ft./min (18m/min)
1PH 50Hz Motor
40 ft./min (12m/min)
Materials Formed

Painted Steel

28 ga. to 22 ga. (0.4mm to 0.8mm)

50 ksi maximum for 24 to 22 ga. Includes painted, Galvalume, coated galvanized.

Painted Aluminum

.027" to .040" (0.7mm to 1.0mm)

Copper

16 oz. to 20 oz. 3/4 Hard (0.5mm to 0.7mm)

Notching not recommended with copper.

Terne Coat Stainless

26 ga. (0.5mm)

Notching not recommended.

Coil Specifications
Coil Widths
15" to 30" (381mm to 762mm)
Finished Panel Widths
12" to 24" (305mm to 610mm)
Max Coil Diameter Rack
32" (812mm)
Max Coil Diameter Decoiler
45" (1,143mm)
Power Options
  • 7.5 HP, 220V, 60 Hz, 3PH, 18 amps
  • 5 HP, 220V, 60 Hz, 1PH, 20 amps
  • Gas Power (16 HP Briggs & Stratton Engine)
  • 5 HP, 380V, 50 Hz, 3PH, 8 amps
  • 7.5 HP, 460V, 60 Hz, 3PH, 9 amps
  • 5 HP, 220V, 50 Hz, 1PH, 21 amp
Add-On Weights
Trailer
2260 lbs. (1020 kg)
Overhead Reel Rack
336 lbs. (152 kg)
Expandable Arbor (each)
80 lbs. (36 kg)
10-foot Run-out Table (each)
62 lbs. (28 kg)
Perforator
150 lbs. (68 kg)
Notching System
220 lbs. (100 kg)
Angled Slitter
250 lbs. (113 kg)
Strippable Protective Film Applicator
60 lbs. (27 kg)
Warranty & Patents

Limited three-year part and NTM in-house labor warranty.

  • U.S. PATENT NO. 6,772,616
Download Full Spec Sheet

Resources

Downloads & Support

Ironclad Support

Five pillars keep you running.

Downtime kills margins. NTM's real advantage is the system behind the machine — quality, parts, service, training, and warranty working together to keep your operation moving.

  1. 01

    Job-ready from day one

    Quality Control

    Every machine is tested and inspected to spec before it ships — critical systems down to the last bolt. Minimal setup, zero guesswork, production on day one.

  2. 02

    On demand, fast

    Parts Availability

    $2M+ in critical parts inventory, often shipped overnight. If a part is unavailable, we prioritize fulfillment within a week so a stalled job gets moving again.

  3. 03

    Nationwide network

    Service

    Direct access to dozens of experienced technicians. Most issues are resolved over the phone; when they are not, on-site service is available anywhere you operate.

  4. 04

    Hands-on, no cost

    Training

    Personalized training on your machine and your profiles — at your location or our Aurora facility, free to new machine owners. More is always available as your crew grows.

  5. 05

    3-year limited

    Warranty

    Coverage against defects in materials, workmanship, and design. If something is not right, we fix or replace it — fast.

You're buying more than a machine. You're gaining a partner.

Customer Story

“All you gotta do is come run one more panel out. You're not bound to what's in a crate. If you're the roofing contractor, you completely control your own destiny.”

Joe Keene

Integrity Metals · SSQ3 MultiPro

Joe Keene, Integrity Metals

FAQ

Frequently Asked Questions

How long does it take to get an SSQ3 after ordering?
Lead times vary, but the SSQ3 MultiPro typically ships within 4–8 weeks. Contact your specialist for current availability.
What's the difference between the SSQ3 and SSQ II?
The SSQ3 is the latest iteration with QWIKSwap™ tooling (25-minute changeover vs 45 minutes), sealed drive gear covers with inspection windows, RFID cover sensors, shear warning strobe, and interior LED lighting. Both produce the same 16 profiles.
What materials can the SSQ3 process?
Painted steel (28–22 ga.), Galvalume, aluminum (.027"–.040"), copper (16–20 oz.), and terne-coated stainless steel (26 ga.).
Can I switch between gas and electric power?
Yes. The Quick-Change Power-Pack (QCPP) lets you swap between a 16 HP Briggs & Stratton gas engine and 5 HP or 7.5 HP electric motors in the field — no tools required.
What warranty does the SSQ3 come with?
The SSQ3 includes a limited three-year part and NTM in-house labor warranty — the industry's best.

Build your SSQ3™ MultiPro.

Configure and price your machine in your browser, or get one of our specialists on the phone.

Build & Price Talk to a Specialist
