SSR™ MultiPro Jr. Roof Panel Machine

Residential / Light Commercial Multi-Profile Roof Panel Machine

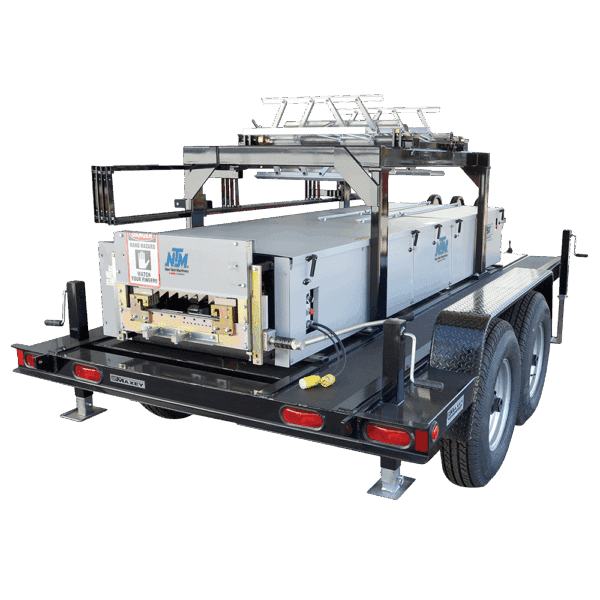

Starting at $37,000+ USD depending on machine configuration. Photo includes optional equipment.
  • The state-of-the-art SSR MultiPro Junior Roof Panel Machine can produce up to seven different panel profiles in variable widths, multiple gauges, and various material types
  • Industry’s best warranty

Contact NTM for more information or to get a formal quote.

Details

Standard Features

  • Polyurethane Drive Rollers
  • Powder-Coated Frame & Covers
  • Length Control Limit Switch
  • 100-Foot, 10 Gauge, 20 Amp Extension Cord
  • Waterproof NEMA 4 Electrical System
  • (2) Run-Out Tables (10-Foot Sections Each)
  • Forward Pulling, Easy Cut Shear
  • One Expandable Arbor / Reel
  • Push Button RUN/JOG Controls at Entry & Exit Ends
  • Welded Tubular Steel Frame
  • Dual Overhead Reel Rack
  • UL Rated Panels (Must Be Certified by UL for Recognition)
  • Industry’s Best Warranty
  • Choice of: EZE-ChangeTM Profile Roller System with Shear Dies
  • Choice of: One Pair of Bead, Pencil, Striation or V-Rib Rollers

Warranties & Patents

Warranty:

New Tech Machinery provides a limited three-year part and NTM in-house labor warranty. Read more about our warranty here.

Patents:

  • U.S. PATENT NO. 6,772,616

Profile Disclaimer:
New Tech Machinery provides no warranty (finish, substrate or weather tight) in relation to the metal roofing systems the machines form. Should a warranty be required, users should consult with metal roof manufacturer or coil supplier prior to contracting on work. It is the sole responsibility of the installer and/or metal panel manufacturer to ensure that the roof system meets all engineering and local building codes.

Specifications

Footprint:

Specifications:

SSR Panel Machines

  • Length: 12’ 6” (3.9m)
  • Width: 3’ 10” (1.2m)
  • Height with Over Head Rack: 4’ 3” (1.3m)
  • Height without Over Head Rack: 1’ 10” (.6m)
  • Weight (Base Machine with Roller Set and Rib Rollers): 1,715 lbs. (780kg)

SSR On Trailer

  • Length: 18’ 11” (5.8m)
  • Width: 7’ 2 1/2″ (2.2m)
  • Height with Reel: 6’ 3” (1.9m)
  • Weight of Machine and Trailer (including Roller Set and Rib Rollers): 3,975 lbs. (1,800kg)

Shear

  • Manually Powered, Infinitely Adjustable, Hardened Tool Steel Blades & Shear Dies

Speed

  • 30 ft./min (9m/min) Approx.

Drive

  • Electrically Driven Polyurethane Rollers via Chain & Sprocket

SSR Add-on Option Weights

  • Trailer: 2,260 lbs. (1020 kg)
  • Overhead Reel Rack: 316 lbs. (143 kg)
  • Expandable Arbor, each: 80 lbs. (36 kg)
  • 10-foot Run-out Table, each: 29 lbs. (13 kg)
  • PVC Strippable Film Applicator: 60 lbs. (27 kg)

Materials Formed

  • Painted Steel: 28 ga. to 24 ga. (0.4mm to 0.6mm) (painted, Galvalume, coated galvanized)
  • 50 ksi maximum for 24 ga.
  • 50 ksi recommended, 80 ksi acceptable with adjustments for 28 ga. to 26 ga.
  • Painted Aluminum: .027” to .040” (.7mm to 1.0mm)
  • Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm

Coil Widths

  • 15” to 20” (380mm to 508mm)

Finished Panel Widths

  • 10” to 16” (254mm to 406mm) – Note: Variable Depending on Panel Profile

Maximum Coil Diameter

  • 32” (812mm) with the Overhead Reel Rack
  • 45” (1,143mm) with the Free Standing Decoiler
