5VC-5V CRIMP™ Roof Panel Machine

Crimp Roof Panel Machine

Starting at $63,350+ USD depending on machine configuration.

  • The portable solution to your 5V crimp needs
  • Profiles available in 21” and 24” widths (533mm and 610mm), multiple gauges, and various metal types
  • Industry’s best warranty

Contact NTM for more information or to get a formal quote.

5VC-5V CRIMP™ Roof Panel Machine Details:

Standard Features

  • Polyurethane Drive Rollers
  • Push Button RUN/JOG Controls at Entry & Exit Ends
  • Hardened Stainless Steel Forming Roller System with Shear Dies
  • Hydraulic Drive & Shear
  • Length Control Limit Switch
  • Panel Recognition Safety Proximity Switch
  • Welded Tubular Steel Frame
  • Power Interruption Safety Circuit
  • Industry’s Best Warranty
  • Choice of: Quick-Change Power-PackTM – Gas or Electric



Warranties & Patents

Warranty:

New Tech Machinery provides a limited three-year part and NTM in-house labor warranty. Read more about our warranty here.

Patents:

  • U.S. PATENT NO. 6,772,616

Profile Disclaimer:

    New Tech Machinery provides no warranty (finish, substrate or weather tight) in relation to the metal roofing systems the machines form. Should a warranty be required, users should consult with metal roof manufacturer or coil supplier prior to contracting on work. It is the sole responsibility of the installer and/or metal panel manufacturer to ensure that the roof system meets all engineering and local building codes.

5VC-5V CRIMP™ Roof Panel Machine Footprint & Specifications:

Footprint:

5VC-5V Roof Panel Machine Footprint

Specifications:

5VC Panel Machines

  • Length: 10’ 5” (3.2m)
  • Width: 4’ 10-1/2” (1.2m)
  • Height with Over Head Rack: 4’ 3” (1.3m)
  • Height without Over Head Rack: 2’ 4” (.75m)
  • Weight (Base Machine with Roller Set, Power Pack, and Rib Rollers): 2,200 lbs. (1,000kg)

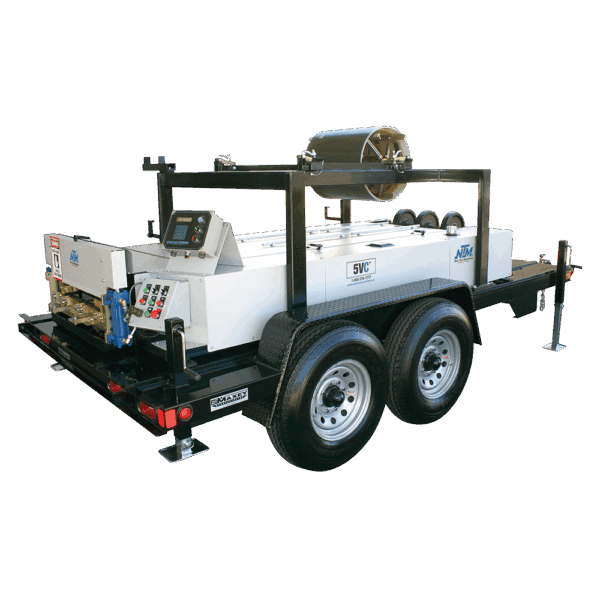

5VC On Trailer

  • Length: 18’ 11” (5.8m)
  • Width: 7’ 2-1/2″ (2.2m)
  • Height with Reel: 6’ 3” (1.9m)
  • Weight of machine and trailer (including Roller Set, Power Pack, and Rib Rollers): 4,460 lbs. (2,020kg)

Shear

  • Hydraulically Powered, Hardened Tool Steel Blades & Shear Dies

Drive

  • Hydraulically Driven Polyurethane Rollers

Speed

  • 60 ft./min (18m/min) Approx.



5VC-5V Add-on Option Weights

  • Trailer: 2,260 lbs. (1,020 kg)
  • Overhead Reel Rack: 336 lbs. (152 kg)
  • Expandable Arbor, each: 80 lbs. (36 kg)
  • 10-foot Run-out Table, each: 62 lbs. (28 kg)
  • PVC Strippable Film Applicator: 60 lbs. (27 kg

Materials Formed

  • Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
  • Painted Aluminum: .027” to .040” (.7mm to 1.0mm)
  • Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)

Coil Widths

  • 24” (610mm)
  • 27” (686mm)
  • 27-1/2” (699mm)

Finished Panel Widths

  • 21” (533mm) or 24” (610mm)

Maximum Coil Diameter

  • 32” (812mm) with the Overhead Reel Rack
  • 45” (1,143mm) with the Free Standing Decoiler

Power Options

  • 7.5 HP, 220V, 60 Hz, 3PH, 18 amps
  • 5 HP, 220V, 60 Hz, 1PH, 20 amps
  • Gas Power (16 HP Briggs & Stratton Engine)
  • 5 HP, 380V, 50 Hz, 3PH, 8 amps (overseas use)
  • 7.5 HP, 460V, 60 Hz, 3PH, 9 amps
  • 5 HP, 220V, 50 Hz, 1PH, 21 amp
