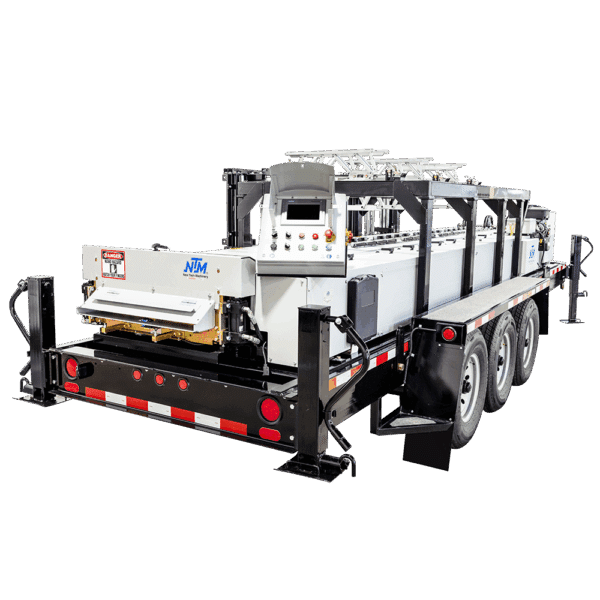

WAV™ Wall Panel Machine

Starting: $151,000.00

The Industry’s Only Portable WAV Profile Machine!
  • Can produce 16″ WAV-style profiles
  • Coming soon: 8″ and 12″ WAV-style profiles!
  • On-site machine set-up & training within the continental U.S. and Canada included
  • Industry’s best warranty
  • Starting at $151,000 USD—photos include optional equipment. Contact NTM for more information or to get a formal quote.

Standard Features

Features:

  • Can form 16″ WAV-style profile
  • Will soon have 8″ and 12″ WAV-style profiles available
  • NTM100 Controller
  • Hydraulic Shear
  • Hydraulic Drive
  • Equipped with both 16 HP Gas Engine and 460V 3-Phase Electric Power
  • Minimum Flat Sheet Feed – Length is 62 Inches (1,575mm)
  • Free on-site setup and training within the continental U.S. and Canada included

Warranties & Patents

USA / Canada Warranty:

  • Three years parts (including electrical) / Three years labor
  • Limited lifetime against separation on drive rollers
  • Limited lifetime against wear on stainless steel forming rollers

International Warranty:

  • Three years parts (including electrical) / Excluding freight
  • Limited lifetime against separation on drive rollers
  • Limited lifetime against wear on stainless steel forming rollers
  • Profile Disclaimer:
    New Tech Machinery provides no warranty (finish, substrate or weather tight) in relation to the metal roofing systems the machines form. Should a warranty be required, users should consult with metal roof manufacturer or coil supplier prior to contracting on work. It is the sole responsibility of the installer and/or metal panel manufacturer to ensure that the roof system meets all engineering and local building codes.

Specifications

Footprint:

Specifications:

WAV Panel Machine

  • Length: 22’ 8” (6.7m)
  • Width: 5’1” (1.5m)
  • Height: 4’ 5” (1.2m) with Over Head Rack / 2’ 7” (.61m) without Over Head Rack
  • Weight: 5,000 lbs. (2,272.7kg)

WAV On Trailer

  • Length: 27’ 10” (8.2m)
  • Width: 7’4” (2.1m)
  • Height: 6’ 7” (1.83m) with Reel
  • Weight: 8,700 lbs. (3,954.6kg)

Speed

  • Up to 150 Feet Per Minute (45.7 Meters Per Minute) – Electric Power
  • Up to 75 Feet Per Minute (22.8 Meters Per Minute) – Gas Power

Panel

  • 16″ coverage (406mm)
  • Eventually will have 12” and 8” coverage (305mm and 203mm)

Drive

  • Hydraulically Driven via Chain, Sprocket & Gear Using 25 Polyurethane Drive Rollers

Shear

  • Hydraulically Powered, Hardened Tool Steel Blades & Shear Dies
  • Panel Recognition Proximity Sensor

Hydraulic Fluid

  • 24 Gallons – 32AW

Coil Width

  • 24” (610mm) for the standard 16-4 profile
  • See the individual profile drawings for their coil widths

Maximum Coil Diameter

  • 32” (812mm) with the Overhead Reel Rack
  • 45” (1,143mm) with the Free Standing Decoiler

Materials Formed

  • Painted Steel: 22 or 24 Ga. (0.8mm to 0.6mm) (painted, Galvalume, coated galvanized)
  • Painted Aluminum: 0.032” to 0.040” (.8mm to 1.0mm)

Controls

  • Computer Batch & Length Control

Accessories & Add-on Options

    Fixed Mount Machine Stand - CRT-W

    Trailer - TR23G

    Trailer - TR23

    Trailer - TR12XL

    Triple Overhead Reel Stand - DR01-Triple

    Single Overhead Reel Stand - DR1-WAV

    Machine Cover - CVR-WAV-G

    Single Free Standing De-Coiler - FSD1

    Variable Height Run Out Table - ROS-10

    Expandable Arbor - DR01-EX
