MACH II™ 6" Gutter Machine
6” Gutter Machine — The Original Polyurethane Drive System.
- Starting at $10,500+ USD, depending on machine configuration.

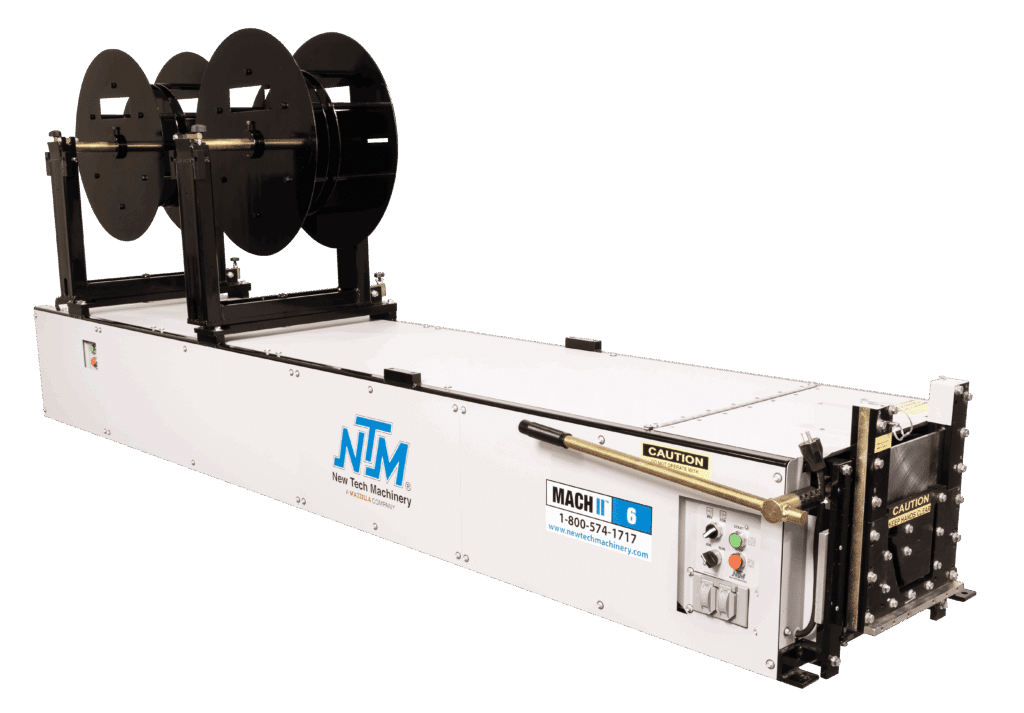

*Photo includes optional equipment available for an additional cost.
New Tech Machinery (NTM) began designing the first Mach II™ portable seamless gutter machine in 1991 and shipped the very first unit in 1994. More than three decades later, this portable roll-former is still a go-to for contractors who need to run K-style seamless gutters on-site. It's the most copied machine in the industry and has been an essential part of helping contractors build successful businesses for over 30 years. Also, it's offered with the industry's best warranty.
Details & Specifications
Built to spec
Standard Features
- Polyurethane Drive Rollers
- Two 360° Rotatable Reel Stands for Easy Coil Loading
- Stainless Steel Forming Rollers
- Electric Motor 3/4 HP, 110 VAC, 60 Hz, 1 Ph, 11 AMPs
- Push Button RUN/JOG Controls at Entry & Exit Ends
- Welded Tubular Steel Frame
- Forward Pulling, Easy Cut Shear for Accuracy
- Industry’s Best Warranty
- Power Interruption Safety Circuit
- Easy Lift Reels
Specifications
5” Gutter Machine
- Length: 8’ (2.4m)
- Width: 2’ (.6m)
- Height: 4’ (1.2m)
- Weight: 1,000 lbs. (454kg)
6” Gutter Machine
- Length: 10’ (3.0m)
- Width: 2’ (.6m) Plus Shear Handle
- Height: 4’ (1.2m)
- Weight: 1,250 lbs. (570kg)
5″/6” Gutter Machine
- Length: 10’ (3.0m)
- Width: 2’ (.6m) Plus Shear Handle and Extra Shear
- Height: 4’ (1.2m)
- Weight: 1,350 lbs. (610kg)
Speed
- 50 ft./min (15m/min) Approx.
Materials Formed
- Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
- Painted Aluminum: .019″ to .032″ (.5mm to .8mm)
- Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)
Shear
- Manually Powered
- Hardened Tool Steel Blades & Shear Dies
Material Width
- 5” Gutter: 11-3/4” to 12-3/8” (300mm to 315mm)
- 6” Gutter: 15” (380mm)
Drive
- Electrically Driven Polyurethane Rollers
Maximum Coil Weight
- Recommended maximum coil weight is 1000 lbs. for the reel and 400 lbs. for the cradle
Maximum Outside Diameter for Coil
- 30″ (762mm) on reel
Warranty & Patents
Warranty:
New Tech Machinery provides a limited three-year part and NTM in-house labor warranty. Read more about our warranty here.
Patents:
- U.S. PATENT NO. 5,394,722
- U.S. PATENT NO. 5,740,687
MACH II™ 6" Gutter Machine
Portable Rollforming Channel
Video
New Tech Machinery
Compatible Accessories
Built for the MACH II™ 6" Gutter Machine
Gutter Workstation
$3,200.00
MACH II 5", 6", 5"/6" Gutter Machine Cart - MG-CART
$2,400.00
Wireless Remote 4-button start - REM-4, REM-6-A, and REM-6-C
$2,900.00
Machine Cover - CVR-GM5 or GM56
12 Volt Electrical System - MG12V
$1,900.00
Bottom Bead Assembly - BB5 and BB6
$745.00
Coil Cradle - CR5-5/6
$1,325.00
Turnstile Reel Stand - TRN
$380.00
Alcoa Hook - HK5, HK6, HK5/6
$1,450.00
Riser Pads - RISER6-8 or RISER10-12
$760.00
Transfer Rack - RAC
$570.00
16" ID Adjustable Width Reel - RL16
$700.00
Ironclad Support
Five pillars keep you running.
Downtime kills margins. NTM's real advantage is the system behind the machine — quality, parts, service, training, and warranty working together to keep your operation moving.
-
01
Job-ready from day one
Quality Control
Every machine is tested and inspected to spec before it ships — critical systems down to the last bolt. Minimal setup, zero guesswork, production on day one.
-
02
On demand, fast
Parts Availability
$2M+ in critical parts inventory, often shipped overnight. If a part is unavailable, we prioritize fulfillment within a week so a stalled job gets moving again.
-
03
Nationwide network
Service
Direct access to dozens of experienced technicians. Most issues are resolved over the phone; when they are not, on-site service is available anywhere you operate.
-
04
Hands-on, no cost
Training
Personalized training on your machine and your profiles — at your location or our Aurora facility, free to new machine owners. More is always available as your crew grows.
-
05
3-year limited
Warranty
Coverage against defects in materials, workmanship, and design. If something is not right, we fix or replace it — fast.
You're buying more than a machine. You're gaining a partner.
Build your MACH II™ 6" Gutter Machine.
Configure and price your machine in your browser, or get one of our specialists on the phone.
