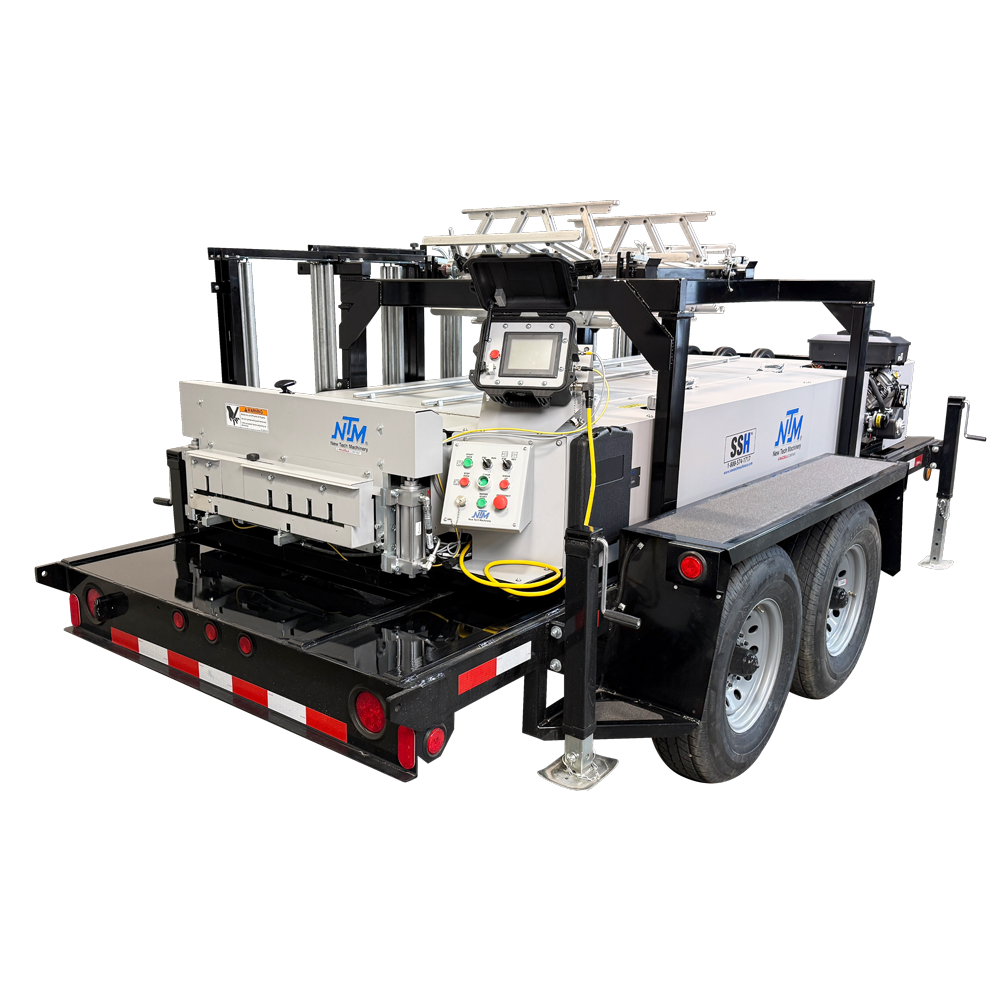

SSH™ MultiPro Roof Panel Machine

Roof & Wall Panel Machines

SSH™ MultiPro Roof Panel Machine

Residential / Light Commercial Multi-Profile Roof Panel Machine

Starting at $71,600 USD, depending on machine configuration. Includes choice of one profile.

  • The high-performance solution to your residential and light commercial needs.
  • Seven available panel profiles in variable widths, multiple gauges, and various material types
  • Offered with the industry's best warranty
Build & Quote Talk to a Specialist

Inside the Machine

Built to Perform

The Forming System

Precision for Residential Roofing

8 polyurethane drive rollers with EZE-Change™ profile roller system for quick profile swaps.

  • 8 polyurethane drive rollers
  • Hydraulically powered shear with hardened tool steel blades
  • Panel recognition safety system

The Frame

Compact and Job-Site Tough

Welded tubular steel frame with powder-coated covers. Lighter than the SSQ line for easier transport.

  • 2360 lbs base weight
  • Welded tubular steel frame
  • Powder-coated covers

The Power Pack

Gas or Electric. Your Choice.

Quick-Change Power-Pack for field-swappable gas or electric power.

  • 16 HP Briggs & Stratton gas engine
  • 5 HP or 7.5 HP electric motor options
  • Up to 60 ft/min production speed

The Controls

PLC Controller Included

PLC batch and length computerized controller comes standard.

  • PLC Batch / Length Computerized Controller included
  • Push-button RUN/JOG at entry & exit ends
  • Length control limit switch

Not sure this is the right machine? Take the machine quiz

Engineering Specs
Machine / On Trailer

Machine Footprint

SSH Machine Footprint
01 Machine
Length
12'10" (3.9m)
Width
4'10½" (1.2m)
Height
4'3" (1.3m)
Weight
2,360 lbs. (1,070 kg)
No Rack
2'0" (0.6m)
02 On Trailer
Length
18'11" (5.8m)
Width
7'2½" (2.2m)
Height
6'3" (1.9m)
Weight
4,620 lbs. (2,090 kg)
Machine Footprint
Full PDF

Full Spec Sheet

See full spec sheet

Standard Features

  • 8 Polyurethane Drive Rollers
  • Powder-Coated Covers
  • Power Interruption Safety Circuit
  • Runs Up to 24 Gauge Steel
  • Hydraulic Drive & Shear
  • Length Control Limit Switch
  • PLC Batch / Length Computerized Controller
  • Welded Tubular Steel Frame
  • EZE-Change™ Profile Roller System
  • Push Button RUN/JOG Controls
  • Quick-Change™ Power-Pack (Gas or Electric)
  • UL-Rated Panels
  • One Pair of Bead, Pencil, Striation or V-Rib Rollers (choice of)

Performance Specs

Shear System

Hydraulic

  • Hydraulically Powered
  • Infinitely Adjustable
  • Hardened Tool Steel Blades & Shear Dies
  • Panel Recognition Safety System

Drive System

Hydraulic

  • Hydraulically Driven via Chain, Sprocket & Gear

Production Speed

All Power Sources
60 ft./min (18.3m/min)

Materials Formed

Painted Steel

28 ga. to 24 ga. (0.4mm to 0.6mm)

Painted, galvanized, aluminized.

Painted Aluminum

.027" to .040" (0.7mm to 1.0mm)

Copper

16 oz. to 20 oz. 3/4 Hard (0.5mm to 0.7mm)

Terne-Coat Stainless Steel

26 ga. (0.6mm)

Coil Specifications

Coil Widths
14" to 24" (355mm to 610mm)
Finished Panel Widths
12" to 20" (254mm to 508mm)
Max Coil Diameter Rack
32" (812mm)
Max Coil Diameter Decoiler
45" (1,143mm)

Power Options

  • 7.5 HP, 220V, 60 Hz, 3PH, 18 amps
  • 5 HP, 220V, 60 Hz, 1PH, 20 amps
  • Gas Power (16 HP Briggs & Stratton Engine)
  • 5 HP, 380V, 50 Hz, 3PH, 8 amps
  • 7.5 HP, 460V, 60 Hz, 3PH, 9 amps
  • 5 HP, 220V, 50 Hz, 1PH, 21 amp

Add-On Weights

Trailer
2260 lbs. (1020 kg)
Overhead Reel Rack
336 lbs. (152 kg)
Expandable Arbor (each)
80 lbs. (36 kg)
10-foot Run-out Table (each)
62 lbs. (28 kg)
PVC Strippable Film Applicator
60 lbs. (27 kg)

Warranty & Patents

Limited three-year part and NTM in-house labor warranty.

  • U.S. PATENT NO. 6,772,616

Your Panels, Your Way

SSH MultiPro Profiles

Get it to the jobsite

The Trailer Built for This Machine

The trailer is engineered around the machine, not adapted to it. Sold separately.

See the trailer lineup
TR12-D 12,000 lb · Tandem axle

NATM-compliant 12,000 lb tandem-axle trailer for towing any NTM roofing machine to the jobsite — crane lifting eyes, drop-foot jack stands, and electric brakes with breakaway kit.

Starting at $19,000
View

Compatible Accessories

Upgrades for the SSH™ MultiPro Roof Panel Machine

Machine Fit

Who the SSH metal roof panel machine is for

A hydraulic standing seam roll former for residential and light commercial crews. It runs 7 profiles at up to 60 feet per minute.

Built for

  1. Residential and light commercial roofing contractors
  2. Contractors who need hydraulic shear and drive at a mid-range price
  3. Businesses running 7 residential and light-commercial profiles
  4. Crews processing steel, aluminum, copper, or terne-coat stainless

Reconsider if

High-volume commercial operations needing 16+ profiles
SSQ3™ MultiPro Roof and Wall Panel Machine
Gutter-only installers
MACH II™ 5" Gutter Machine
Contractors who only need exposed-fastener 5V crimp
5VC-5V CRIMP™ Roof Panel Machine
Shops focused exclusively on wall panel production
WAV™ Wall Panel Machine

Resources

Downloads & Support

Manuals

Literature

Buying guides

Profile changes, troubleshooting, and how-to videos for the SSH MultiPro: Visit the Service Hub

Ironclad Support

Five pillars keep you running.

Downtime kills margins. NTM's real advantage is the system behind the machine — quality, parts, service, training, and warranty working together to keep your operation moving.

  1. 01

    Job-ready from day one

    Quality Control

    Every machine is tested and inspected to spec before it ships — critical systems down to the last bolt. Minimal setup, zero guesswork, production on day one.

  2. 02

    On demand, fast

    Parts Availability

    $2M+ in critical parts inventory, often shipped overnight. If a part is unavailable, we prioritize fulfillment within a week so a stalled job gets moving again.

  3. 03

    Nationwide network

    Service

    Direct access to dozens of experienced technicians. Most issues are resolved over the phone; when they are not, on-site service is available anywhere you operate.

  4. 04

    Hands-on, no cost

    Training

    Personalized training on your machine and your profiles — at your location or our Aurora facility, free to new machine owners. More is always available as your crew grows.

  5. 05

    3-year limited

    Warranty

    Coverage against defects in materials, workmanship, and design. If something is not right, we fix or replace it — fast.

You're buying more than a machine. You're gaining a partner.

FAQ

Frequently Asked Questions

How much does the SSH metal roof panel machine cost?
The SSH MultiPro starts at $71,600 with one profile included. Buyers who add a trailer, reel stand, and other accessories typically spend $94,000 or more. See the roof panel machine cost guide.

What profiles can the SSH produce?
The SSH produces 7 panel profiles including mechanical seam, snap-lock, snap-lock with slotted flange, and T-Panel options for residential and light commercial roofing. Clip relief and rib rollers are available as tooling options.

What's the difference between the SSH and SSQ3?
The SSQ3 produces 16 profiles (including wall panels) vs 7 for the SSH. The SSQ3 is built for high-volume commercial + residential work, while the SSH is focused on residential and light commercial.

Does the SSH include a controller?
Yes — the SSH includes a PLC Batch/Length Computerized Controller as standard equipment.

What warranty is included?
Limited three-year part and NTM in-house labor warranty.

How fast does the SSH run?
Up to 60 feet per minute on every power source.

What materials and gauges can the SSH run?
Painted steel from 28 to 24 gauge, painted aluminum from .027" to .040", 16 to 20 oz. copper, and 26 gauge terne-coat stainless steel. Coil widths run 14" to 24".

Does the SSH run on gas or electric power?
Both. The Quick-Change™ Power-Pack swaps between a 16 HP Briggs & Stratton gas engine and 5 HP or 7.5 HP electric motors.

How much does the SSH weigh?
The machine weighs 2,360 lbs. (1,070 kg). On its trailer it weighs 4,620 lbs. (2,090 kg).
