MACH II™ 5"/6" Combo Gutter Machine MACH II™ 5"/6" Combo Gutter Machine

5" and 6" K-Style
in One Machine.

The combo runs both 5" and 6" K-style seamless gutters. Maximum versatility for gutter contractors.

Starting at $12,300+ Depending on machine configuration

Build & Quote See Specs

K-Style Sizes: 5" & 6"
Max Speed: 50 ft/min
Standard Outlet: 110V
Starting Price: $12,300+

Inside the Machine

Built to Perform

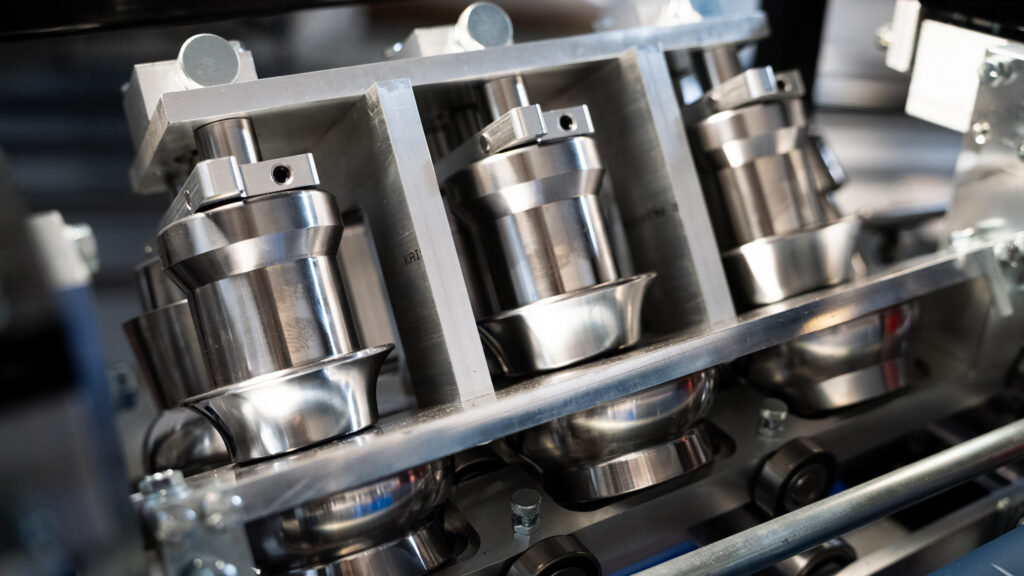

The Forming System

Polyurethane Drive, Stainless Forming

Polyurethane drive rollers with stainless steel forming rollers. Run both 5" and 6" gutters from one machine.

Polyurethane drive rollers
Stainless steel forming rollers
Forward pulling easy cut shear with extra shear

The Frame

Compact and Light

Welded tubular steel frame. Same footprint as the 6" model with added versatility.

1350 lbs total weight
Welded tubular steel frame
Two 360° rotatable reel stands

The Power

Simple Electric Drive

3/4 HP 110V motor. Plug into any standard outlet.

3/4 HP 110 VAC 60 Hz 1 Phase 11 AMPs
Push-button RUN/JOG at entry & exit ends
Power interruption safety circuit

Gutter Profiles

Your Panels, Your Way

Every 5" and 6" K-style profile this machine forms. Swipe through to see the full range.

Accessories

Complete Your Setup

The carts, covers, and add-ons built to run with this machine. Add what your crew needs to work faster on site.

Gutter Workstation

$3,200.00

MACH II 5", 6", 5"/6" Gutter Machine Cart - MG-CART

$2,400.00

Wireless Remote 4-button start - REM-4, REM-6-A, and REM-6-C

$2,900.00

Machine Cover - CVR-GM5 or GM56

12 Volt Electrical System - MG12V

$1,900.00

Bottom Bead Assembly - BB5 and BB6

$745.00

Coil Cradle - CR5-5/6

$1,325.00

Turnstile Reel Stand - TRN

$380.00

Alcoa Hook - HK5, HK6, HK5/6

$1,450.00

Riser Pads - RISER6-8 or RISER10-12

$760.00

Transfer Rack - RAC

$570.00

16" ID Adjustable Width Reel - RL16

$700.00

Engineering Specs

Machine / On Trailer

01 5" Gutter

Length: 8' (2.4m)
Width: 2' (0.6m)
Height: 4' (1.2m)
Weight: 1,000 lbs. (454 kg)

02 6" Gutter

Length: 10' (3.0m)
Width: 2' (0.6m) plus shear handle
Height: 4' (1.2m)
Weight: 1,250 lbs. (570 kg)

03 5"/6" Combo

Length: 10' (3.0m)
Width: 2' (0.6m) plus shear handle and extra shear
Height: 4' (1.2m)
Weight: 1,350 lbs. (610 kg)

Machine Footprint

Open Full PDF

Technical Specifications

Full Details

Every standard feature, dimension, and spec for this machine. Expand a section for the full breakdown.

Standard Features

Polyurethane Drive Rollers
Two 360° Rotatable Reel Stands for Easy Coil Loading
Stainless Steel Forming Rollers
Electric Motor: 3/4 HP, 110 VAC, 60 Hz, 1 Phase, 11 AMPs
Push Button RUN/JOG Controls at Entry & Exit Ends
Welded Tubular Steel Frame
Forward Pulling, Easy Cut Shear for Accuracy
Industry's Best Warranty
Power Interruption Safety Circuit
Easy Lift Reels

Machine Dimensions

Machine

Length: 10' (3.0m)
Length Slitter
Width: 2' (0.6m)
Height: 4' (1.2m)
Height No Rack
Weight: 1,350 lbs. (610 kg)

Performance Specs

Shear System

Manual

Manually Powered
Hardened Tool Steel Blades & Shear Dies

Drive System

Electric

Electrically Driven Polyurethane Rollers

Production Speed

Electric Motor: 50 ft./min (15m/min)

Materials Formed

Painted Steel

30 ga. to 24 ga. (0.3mm to 0.6mm)

Painted, Galvalume, coated galvanized.

Painted Aluminum

.019" to .032" (0.5mm to 0.8mm)

Copper

16 oz. to 20 oz. 3/4 Hard (0.5mm to 0.7mm)

Coil Specifications

Coil Widths: 5" gutter: 11¾"–12⅜" (300–315mm) · 6" gutter: 15" (380mm)
Finished Panel Widths: 5" or 6" K-style gutter
Max Coil Diameter Rack: 30" (762mm) on reel
Max Weight Reel: 1,000 lbs. (recommended)
Max Weight Cradle: 400 lbs. (recommended)

Power Options

3/4 HP, 110 VAC, 60 Hz, 1 Phase, 11 AMPs

Warranty & Patents

Limited three-year part and NTM in-house labor warranty.

U.S. PATENT NO. 5,394,722
U.S. PATENT NO. 5,740,687

Download Full Spec Sheet

Resources

Downloads & Support

Ironclad Support

Five pillars keep you running.

Downtime kills margins. NTM's real advantage is the system behind the machine — quality, parts, service, training, and warranty working together to keep your operation moving.

01

Job-ready from day one

Quality Control

Every machine is tested and inspected to spec before it ships — critical systems down to the last bolt. Minimal setup, zero guesswork, production on day one.
02

On demand, fast

Parts Availability

$2M+ in critical parts inventory, often shipped overnight. If a part is unavailable, we prioritize fulfillment within a week so a stalled job gets moving again.
03

Nationwide network

Service

Direct access to dozens of experienced technicians. Most issues are resolved over the phone; when they are not, on-site service is available anywhere you operate.
04

Hands-on, no cost

Training

Personalized training on your machine and your profiles — at your location or our Aurora facility, free to new machine owners. More is always available as your crew grows.
05

3-year limited

Warranty

Coverage against defects in materials, workmanship, and design. If something is not right, we fix or replace it — fast.

You're buying more than a machine. You're gaining a partner.

Customer Story

“The flexibility to do both under one machine. It opens a lot of doors. With New Tech, we don't mess around. It's just more time we're able to work and install.”

Matt Petrie

ZTK Enterprises · MACH II 5"/6" Combo

Watch the Full Story

FAQ

Frequently Asked Questions

Why choose the combo over separate 5" and 6" machines?

The combo lets you run both 5" and 6" K-style gutters from a single machine. It costs less than buying two separate machines and takes up less space on the truck.

Is switching between 5" and 6" difficult?

No — switching between gutter sizes is straightforward with the combo's dual forming system.

What profiles are available?

All 5" and 6" K-style profiles: bottom bead, Alcoa hook, and straight back for both sizes.

What warranty is included?
