MACH II™ 5″, 6″, & 5″/6″ Gutter Machines

Starting: $6,900.00

5”, 6”, & 5″/6” Combo Gutter Machines — The Original Polyurethane Drive System.

The award-winning MACH II has taken the seamless gutter industry to a whole new level. The only way to compete in the gutter forming business is to own the MACH II. It’s the most copied machine in the industry, so don’t get stuck with an imitation! Offered with the industry’s best warranty. Starting at $6,900 USD—photos include optional equipment. Contact NTM for more information or to get a formal quote.

Category: Tags: ,

Standard Features

  • Polyurethane Drive Rollers
  • Two 360° Rotatable Reel Stands for Easy Coil Loading
  • Stainless Steel Forming Rollers
  • Electric Motor 3/4 HP, 110 VAC, 60 Hz, 1 Ph, 11 AMPs
  • Push Button RUN/JOG Controls at Entry & Exit Ends
  • Welded Tubular Steel Frame
  • Forward Pulling, Easy Cut Shear for Accuracy
  • Industry’s Best Warranty
  • Power Interruption Safety Circuit
  • Easy Lift Reels

Warranties & Patents

USA / Canada Warranty:

  • Three years parts (including electrical) / Three years labor
  • Limited lifetime against separation on drive rollers
  • Limited lifetime against wear on stainless steel forming rollers

International Warranty:

  • Three years parts (including electrical) / Excluding freight
  • Limited lifetime against separation on drive rollers
  • Limited lifetime against wear on stainless steel forming rollers

Patents:

  • U.S. PATENT NO. 5,394,722
  • U.S. PATENT NO. 5,740,687

Specifications

Footprint:

Specifications:

5” Gutter Machine

  • Length: 8’ (2.4m)
  • Width: 2’ (.6m)
  • Height: 4’ (1.2m)
  • Weight: 1,000 lbs. (454kg)

6” Gutter Machine

  • Length: 10’ (3.0m)
  • Width: 2’ (.6m) Plus Shear Handle
  • Height: 4’ (1.2m)
  • Weight: 1,250 lbs. (570kg)

5″/6” Gutter Machine

  • Length: 10’ (3.0m)
  • Width: 2’ (.6m) Plus Shear Handle and Extra Shear
  • Height: 4’ (1.2m)
  • Weight: 1,350 lbs. (610kg)

Speed

  • 50 ft./min (15m/min) Approx.

Materials Formed

  • Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
  • Painted Aluminum: .019″ to .032″ (.5mm to .8mm)
  • Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)

Shear

  • Manually Powered
  • Hardened Tool Steel Blades & Shear Dies

Material Width

  • 5” Gutter: 11-3/4” to 12-3/8” (300mm to 315mm)
  • 6” Gutter: 15” (380mm)

Drive

  • Electrically Driven Polyurethane Rollers

Accessories & Add-on Options

    Machine Cover - CVR-GM5, GM6, or GM56

    12 Volt Electrical System - 12V

    Back Flange Shear - BF5SH thru BF15-6H

    Bottom Bead Assembly - BB5 and BB6

    Back Flange 1" and 1-1/2" - BF1-5 thru BF15-6

    Coil Cradle - CR5-5/6

    Geared Shear - SH5

    Remote 4-button start - REM-6-A

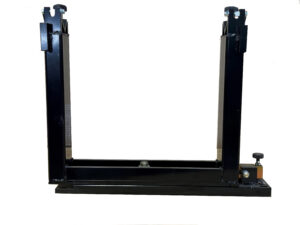

    Turnstile Reel Stand - TRN

    Geared Shear - SH6

    ELEC1 3/4 Hp, 110VAC, 60Hz, 1Ph, 11Amps

    ELEC2 3/4 Hp, 110VAC, 50Hz, 1Ph, 11Amps

    ELEC3 3/4 Hp, 230VAC, 50Hz, 1Ph, 5Amps

    ELEC1 1 Hp, 12VDC, 80Amps

    Alcoa Hook - HK5, HK6, HK5/6

    12 Volt Electrical System - 12V

    Riser Pads - RISER6-8 or RISER10-12

    Transfer Rack - RAC

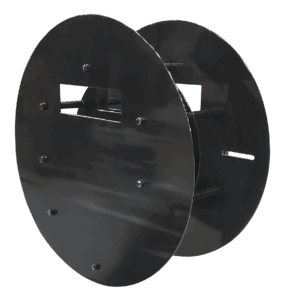

    16" ID Adjustable Width Reel - RL16

    20" ID Adjustable Width Reel - RL20

    Turnstile Reel Stand - TRN

    EZ-Counter Computerized Length Controller

    Set of 3 Run Out Stands - ROSG3

    Run Out Stand - ROSG1
