Plan the Job Around the Machine

Plan-view footprints and shipping dimensions for every NTM portable rollforming and gutter machine. Use them to lay out your shop, plan delivery, or scope a job site.

Quick Reference

Dimensions at a Glance

Length, width, height, and weight for every machine in the current lineup — the machine alone, and loaded on the trailer where that applies. For the full plan view, open the footprint drawing above.

Roof & Wall Panel Machines

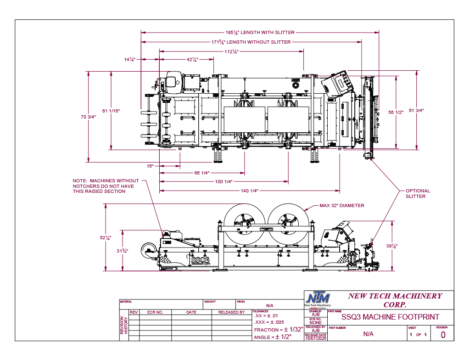

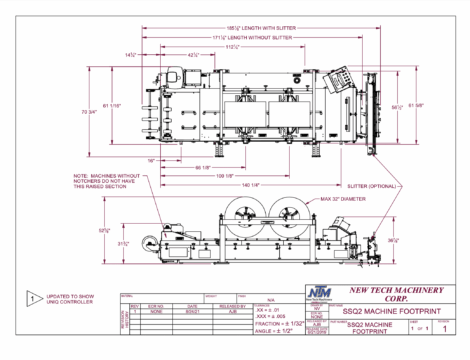

  • SSQ3 MultiPro

    01 Machine

    Length
    14'4" (4.4m)
    Width
    5'2" (1.57m)
    Height
    4'3" (1.3m)
    Weight
    2,830 lbs. (1,280 kg)

    02 On Trailer

    Length
    18'11" (5.8m)
    Width
    7'2½" (2.2m)
    Height
    6'3" (1.9m)
    Weight
    5,090 lbs (2,300 kg)
    View machine

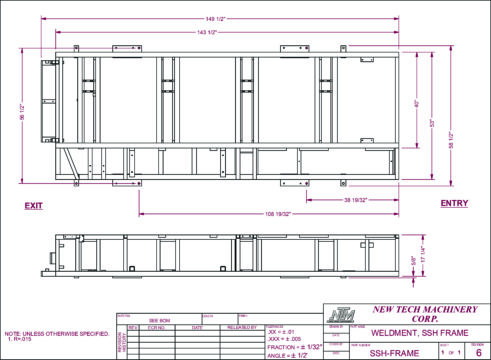

  • SSH MultiPro

    01 Machine

    Length
    12'10" (3.9m)
    Width
    4'10½" (1.2m)
    Height
    4'3" (1.3m)
    Weight
    2,360 lbs. (1,070 kg)

    02 On Trailer

    Length
    18'11" (5.8m)
    Width
    7'2½" (2.2m)
    Height
    6'3" (1.9m)
    Weight
    4,620 lbs. (2,090 kg)
    View machine

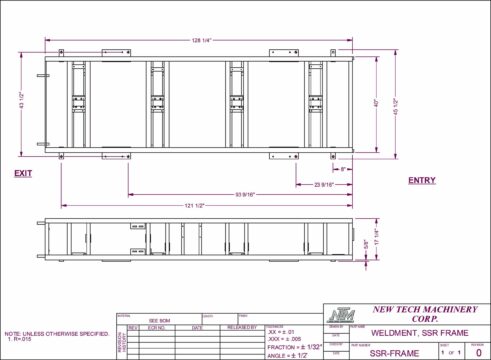

  • SSR MultiPro Jr.

    01 Machine

    Length
    12'6" (3.9m)
    Width
    3'10" (1.2m)
    Height
    4'3" (1.3m)
    Weight
    1,715 lbs. (780 kg)

    02 On Trailer

    Length
    18'11" (5.8m)
    Width
    7'2½" (2.2m)
    Height
    6'3" (1.9m)
    Weight
    3,975 lbs. (1,800 kg)

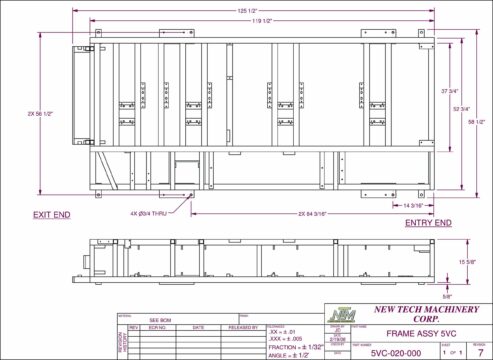

  • 5V Crimp

    01 Machine

    Length
    10'5" (3.2m)
    Width
    4'10½" (1.2m)
    Height
    4'3" (1.3m)
    Weight
    2,200 lbs. (1,000 kg)

    02 On Trailer

    Length
    18'11" (5.8m)
    Width
    7'2½" (2.2m)
    Height
    6'3" (1.9m)
    Weight
    4,460 lbs. (2,020 kg)
    View machine

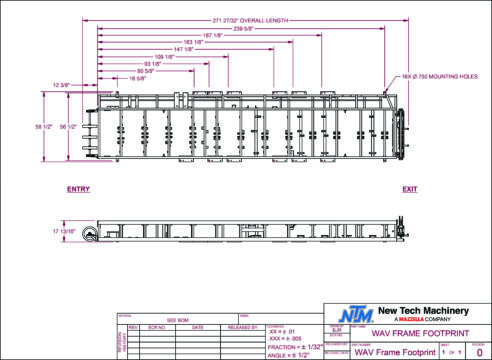

  • WAV Wall Panel

    01 Machine

    Length
    22'8" (6.7m)
    Width
    5'1" (1.5m)
    Height
    4'5" (1.2m)
    Weight
    5,000 lbs. (2,272.7 kg)

    02 On Trailer

    Length
    27'10" (8.2m)
    Width
    7'4" (2.1m)
    Height
    6'7" (1.83m)
    Weight
    8,700 lbs. (3,954.6 kg)
    View machine

Seamless Gutter Machines

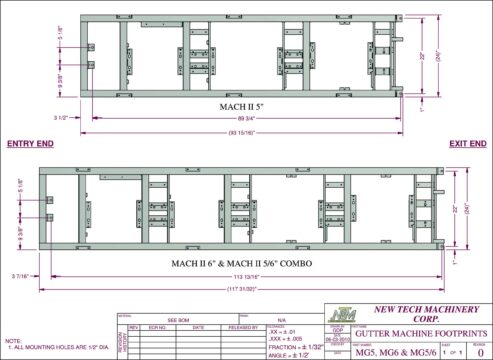

  • MACH II 5"/6" Combo

    01 Machine

    Length
    10' (3.0m)
    Width
    2' (0.6m)
    Height
    4' (1.2m)
    Weight
    1,350 lbs. (610 kg)
    View machine

  • MACH II 5"

    01 Machine

    Length
    8' (2.4m)
    Width
    2' (0.6m)
    Height
    4' (1.2m)
    Weight
    1,000 lbs (454 kg)
    View machine

  • MACH II 6"

    01 Machine

    Length
    10' (3.0m)
    Width
    2' (0.6m)
    Height
    4' (1.2m)
    Weight
    1,250 lbs. (570 kg)
    View machine

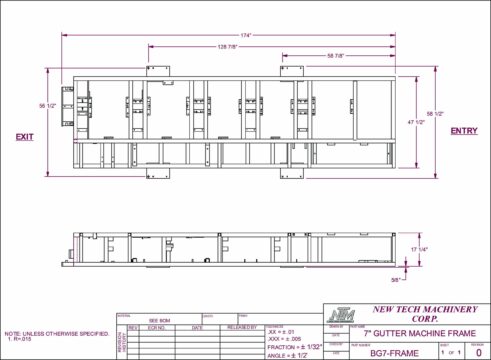

  • BG7 Box Gutter

    01 Machine

    Length
    17'10" (5.4m)
    Width
    4'10½" (1.5m)
    Height
    4'3" (1.3m)
    Weight
    2,600 lbs. (1,180 kg)

    02 On Trailer

    Length
    21' (6.4m)
    Width
    7' (2.1m)
    Height
    6'3" (1.9m)
    Weight
    4,800 lbs. (2,180 kg)
    View machine

Planning Your Shop or Trailer Setup?

Tell an NTM specialist the space you are working with. They will talk through the footprint, the setup, and the machine you are considering before you commit to anything.
