MACH II™ 5″ Gutter Machine
5” Gutter Machine — The Original Polyurethane Drive System.
- Starting at $8,100+ USD, depending on machine configuration.

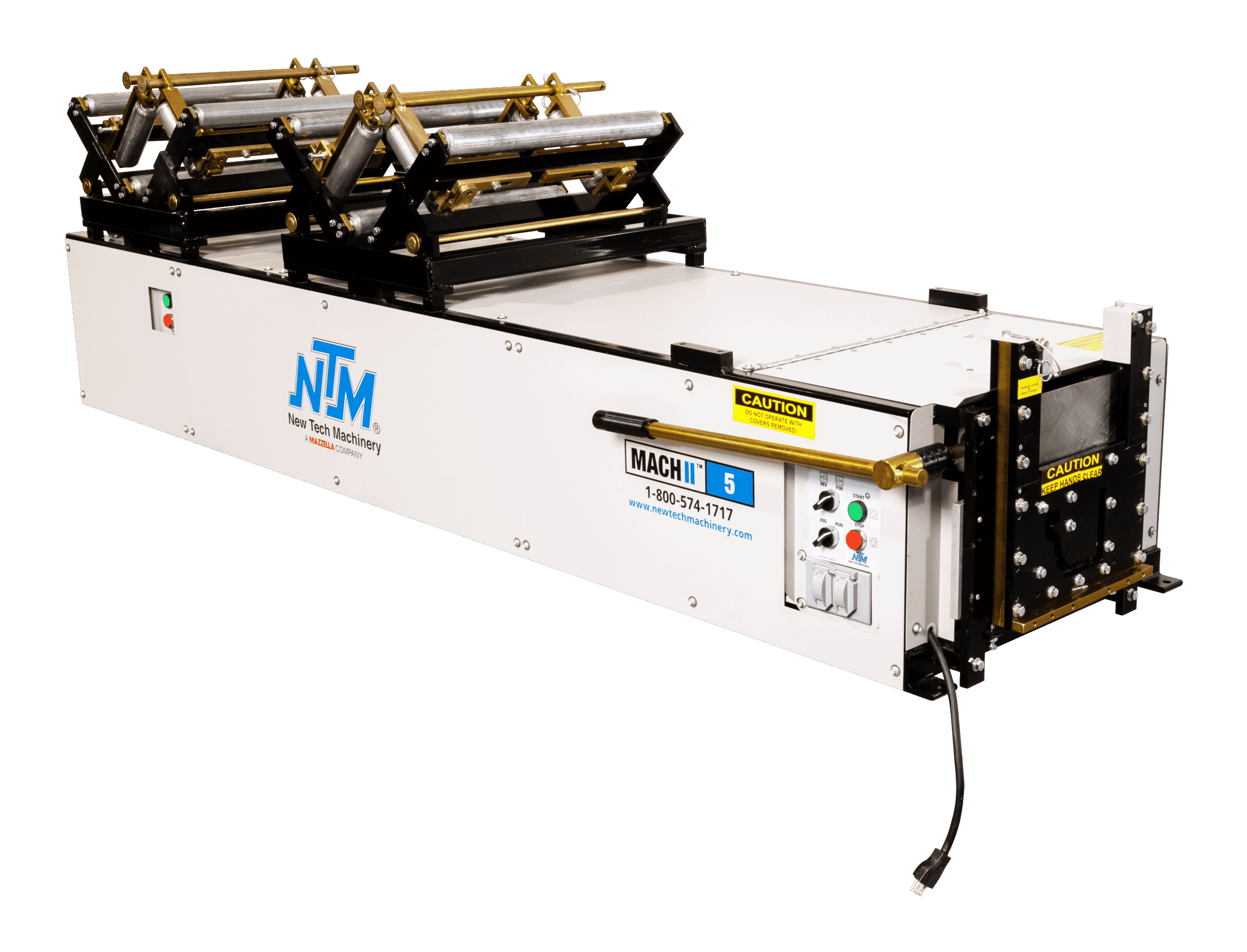

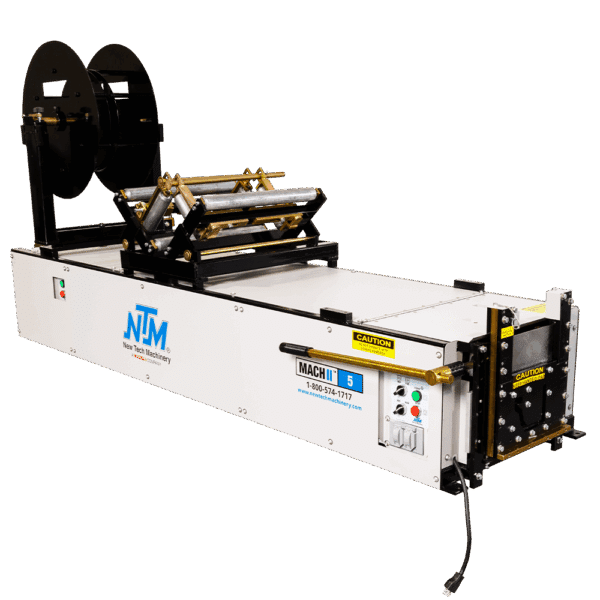

*Photo includes optional equipment available for an additional cost.
Since 1994, NTM’s Mach II™ portable seamless gutter machine took the industry by storm by introducing polyurethane drive rollers and separate forming rollers. The Mach II is a go-to for contractors who need to run K-style seamless gutters on-site. It’s the most copied machine in the industry and has been essential in building successful gutter businesses for over 30 years. No portable gutter machine outperforms the Mach II!
30+ Years of Proven Performance
Discover why the MACH II™ 5″/6″ has been the industry's most trusted and copied gutter machine since 1994.
MACH II™ 5″ Gutter Machine Details:
Standard Features
- Polyurethane Drive Rollers

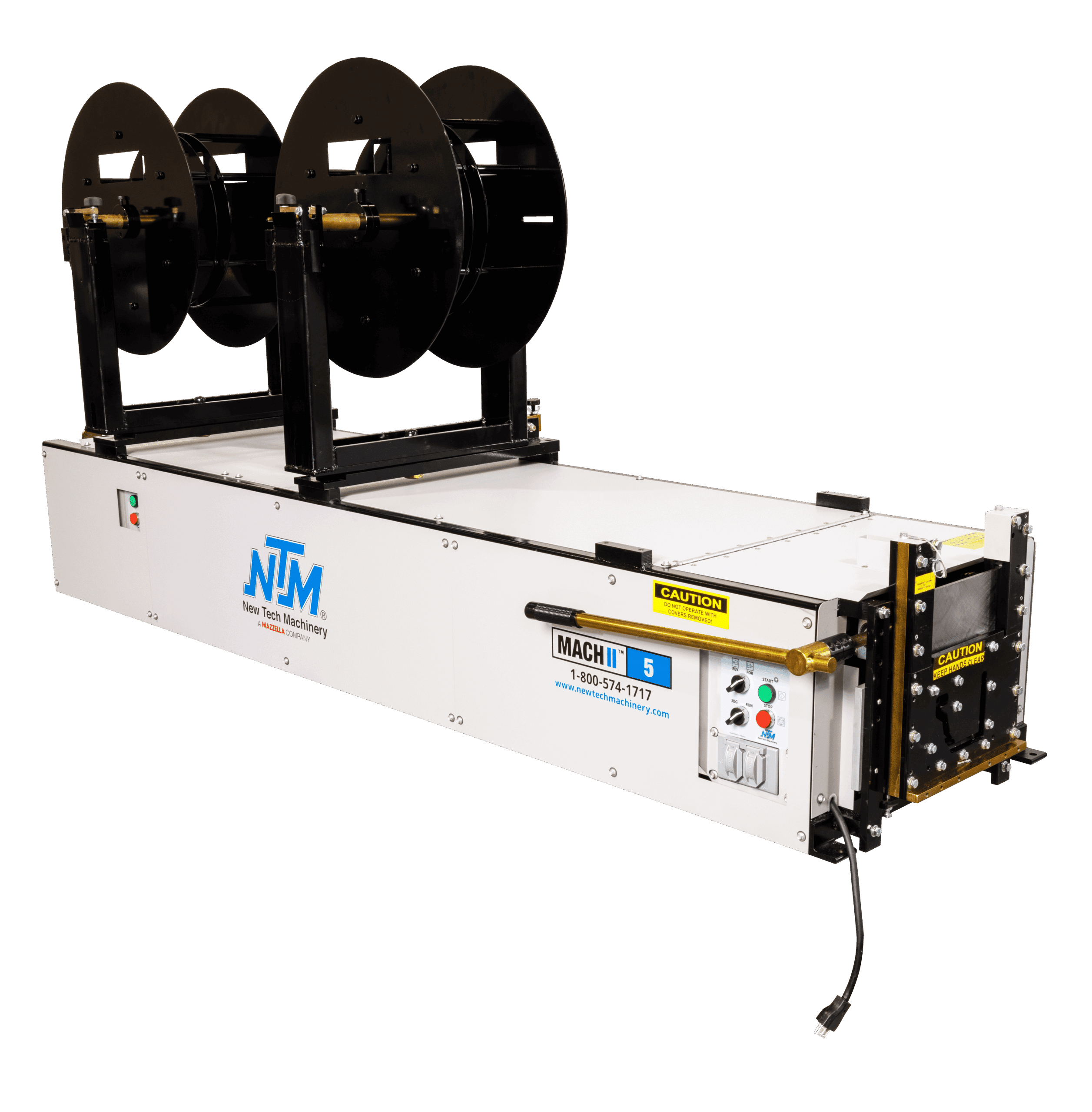

- Two 360° Rotatable Reel Stands for Easy Coil Loading
- Stainless Steel Forming Rollers
- Electric Motor 3/4 HP, 110 VAC, 60 Hz, 1 Ph, 11 AMPs
- Push Button RUN/JOG Controls at Entry & Exit Ends
- Welded Tubular Steel Frame
- Forward Pulling, Easy Cut Shear for Accuracy
- Industry’s Best Warranty
- Power Interruption Safety Circuit
- Easy Lift Reels
Warranties & Patents
Warranty:
New Tech Machinery provides a limited three-year part and NTM in-house labor warranty. Read more about our warranty here.
Patents:
- U.S. PATENT NO. 5,394,722
- U.S. PATENT NO. 5,740,687
MACH II™ 5″ Gutter Machine Footprint & Specifications:
Footprint:
Specifications:
5” Gutter Machine
- Length: 8’ (2.4m)
- Width: 2’ (.6m)
- Height: 4’ (1.2m)
- Weight: 1,000 lbs. (454kg)
6” Gutter Machine
- Length: 10’ (3.0m)
- Width: 2’ (.6m) Plus Shear Handle
- Height: 4’ (1.2m)
- Weight: 1,250 lbs. (570kg)
5″/6” Gutter Machine
- Length: 10’ (3.0m)
- Width: 2’ (.6m) Plus Shear Handle and Extra Shear
- Height: 4’ (1.2m)
- Weight: 1,350 lbs. (610kg)
Speed
- 50 ft./min (15m/min) Approx.
Materials Formed
- Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
- Painted Aluminum: .019″ to .032″ (.5mm to .8mm)
- Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)
Shear
- Manually Powered
- Hardened Tool Steel Blades & Shear Dies
Material Width
- 5” Gutter: 11-3/4” to 12-3/8” (300mm to 315mm)
- 6” Gutter: 15” (380mm)
Drive
- Electrically Driven Polyurethane Rollers
Maximum Coil Weight
- Recommended maximum coil weight is 1000 lbs. for the reel and 400 lbs. for the cradle
Maximum Outside Diameter for Coil

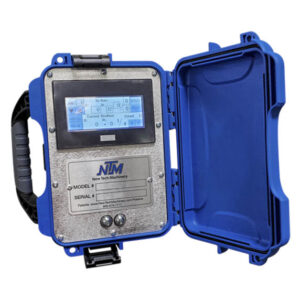

MACH II™ 5″ Gutter Machine Upgrades:
MACH II™ 5″ Gutter Machine Profiles:
