NTM’s Specialty Rollformers: The WAV & 5VC-5V Crimp Machines
New Tech Machinery’s (NTM) SSR Jr. MultiPro, SSH MultiPro, and SSQ II MultiPro Roof and Wall Panel Machine often take center stage, but our two specialty machines stand out for unique applications: the WAV™ Wall Panel Machine and the 5VC-5V CRIMP™ Roof Panel Machine.
Both let you make panels right on the job site, but they serve completely different markets. Let’s dive into what makes each machine tick, what they’re good for, and whether one might be right for your business.
The WAV™ Wall Panel Machine: Modern Architectural Siding
The WAV machine is actually one-of-a-kind in the industry – it’s the only portable rollformer designed specifically for those wavy, architectural wall panels you see on modern commercial buildings.
What Can It Do?
Profiles and Materials
The WAV machine supports six profiles, giving you plenty of options for different jobs. Here’s what you can run:
• Two 16″ profiles with 4 ribs (available with either flange or clip) that work with 24 gauge and 22 gauge grade 50 steel, or 0.032″ or 0.040″ aluminum
• Two 12″ profiles with 1 rib for 24 and 22 gauge grade 50 steel
• Two 8″ profiles with 1 rib for 24 and 22 gauge grade 50 steel
Heads-up: aluminum isn’t recommended for the 12″ and 8″ profiles.
The Nuts and Bolts
• The WAV comes with a 16 HP gas engine and/or 460V three-phase electric option. Most contractors opt for the dual power setup so they can use either depending on the job site.
• It’s our fastest machine. On electric power, it’ll crank out panels at 150 feet per minute. Even running on gas power, you’re still looking at 75 feet per minute. When you’re cladding a warehouse or school, that kind of speed makes a huge difference.
• The WAV is hydraulically driven, using 24 polyurethane drive rollers.
UNIQ® Automatic Control System
Every WAV includes NTM’s UNIQ® Automatic Control System, which gives you precision length control through a user-friendly touchscreen. The screen is easy to read even in bright sunlight, so you won’t be squinting or shading the display on those sunny job sites.
The UNIQ controller comes with several handy features:
• A coil calculator to estimate your remaining material
• Job and entry functions
• Machine settings adjustments
• A USB port for software updates and cut list transfers
Need to run a big job? You can import up to 600 panel lengths via USB and export your final project specs when you’re done. Just tell the WAV exactly what length and how many panels you need, and the controller handles the drive and shear operations.
It also has a proximity sensor, so the machine won’t run another panel until the previous one has been removed, saving potential panel or paint damage to the previously run panel.
The system also includes troubleshooting tools to help you quickly identify and fix any issues, keeping downtime to a minimum so you can stay productive.
Variable Frequency Drive (VFD)
The Variable Frequency Drive (VFD) ensures that the machine operates reliably, even in hot conditions. Additionally, the VFD allows for precise speed control, resulting in improved energy efficiency and long-term cost savings.
Who Needs a WAV Machine?
This machine makes the most sense for contractors and fabricators working on large commercial projects. If you’re already doing metal buildings and want to add architectural wall panels to your offerings, the WAV gives you that capability without relying on suppliers.
It’s also perfect for metal building manufacturers who want to control their panel production, or for roofing contractors looking to expand into wall systems. The distinctive wave profile can set your work apart from the competition, especially on contemporary buildings where architects want something different from flat panels.
What’s the Investment?
Let’s be honest – the WAV isn’t cheap. As of 2025, the base machine costs around $217,500. That includes the UNIQ controller, gas power pack, and on-site training (in the continental U.S. and Canada only).
But that’s just the start. Add a trailer (about $24,500 for single reel or $31,000 for triple reel), overhead reel systems ($4,500-$9,200), and other accessories, and you’re looking at roughly $275K for a complete setup.
That’s a serious investment, but for commercial contractors doing large-scale work, it can quickly pay for itself by eliminating markup on panels and giving you complete control over production timing and quality.
| WAV Wall Panel Machine | |
|---|---|
| Profiles produced | 6 WAV profiles (panel widths 8″, 12″, 16″); each in fastener flange or clip attachment style. Produces wave-like wall panels with 1 or 4 ribs. |
| Materials capability | 24 & 22 gauge grade 50 painted steel 0.032″ – 0.040″ painted aluminum for 16″ panel only Aluminum is not recommended for the 12″ and 8″ profiles. |
| Max speed | Up to 150 ft/ min (45.7 m/min) with electric power 75 ft/ min (22.8 m/min) with gas engine |
| Power sources | 16 HP gas engine and/ or 460V 3-phase electric. Dual power option included (switch as needed). |
| Machine dimensions | Length: ~22′ 8″ (6.7 m) long Width: 5′ 1″ (1.5 m) Height 4′ 5″ (1.2 m) with overhead rack (2′ 7″ without) Weight ~5,000 lbs (2270 kg) |
| Dimensions on trailer | Length: ~27′ 10″ Width: 7′ 4″ wide; 6′ 7″ high (with reel) Total weight: ~8,700 lbs Requires heavy-duty trailer (tandem or tri-axle). |
| Control system | UNIQ® Automatic Control included standard – full computer touchscreen for batch cutting. Advanced features (VFD, sensors) for precision and safety |
| Typical uses | Fabricating architectural wall panels for large commercial/industrial buildings (warehouses, schools, etc.). Perfect for on-site production of siding for big projects – high volume, long lengths. |
| Recommended Users | Metal building fabricators, commercial contractors, and panel manufacturers expanding into wall panels. Those handling large-scale siding jobs or supplying WAV panels to projects. |
| Base price | ~$217,500 USD (base machine)– includes UNIQ controller, gas power, training (continental U.S.). Note: Requires separate trailer or stand purchase. |
| Equipment full setup cost | With typical trailer & accessories, roughly $275k+ |
The 5VC-5V CRIMP™ Roof Panel Machine: Classic Exposed-Fastener Panels
On the other side of the spectrum is the 5V crimp machine, designed specifically for producing exposed-fastener 5V crimp metal roofing panels. Anyone who’s worked in the South or on farm buildings knows these panels well—they have five V-shaped ribs across the panel and are installed with exposed fasteners.
What are Exposed Fastener Metal Roof Panels?
Exposed fastener metal roofing is a system where the panel edges overlap with a raised crimp so that the fastener, or screw, goes through both metal sheets and into a strut or roof deck. The name comes from the fact that the fastener is exposed, unlike standing seam panels, which hide the fasteners.
Where Are Exposed Fastener Metal Roofs Used?
You can install exposed fastener metal roofs on just about any structure, and they’re easier to install than standing seam, but keep in mind, they won’t provide the same level of insulation and protection as a standing seam roof without an underlayment. That’s why, although they’re becoming more popular for homes, they’ve typically been used on agricultural outbuildings.
For residential metal roofing across most of the U.S., you’ll commonly find standing seam systems. They look good, hold up to the elements, and match most house styles. But if you’re working in southern states like Florida and Georgia, exposed 5V crimp roofing offers that classic “Key West Style” look that many homeowners want.

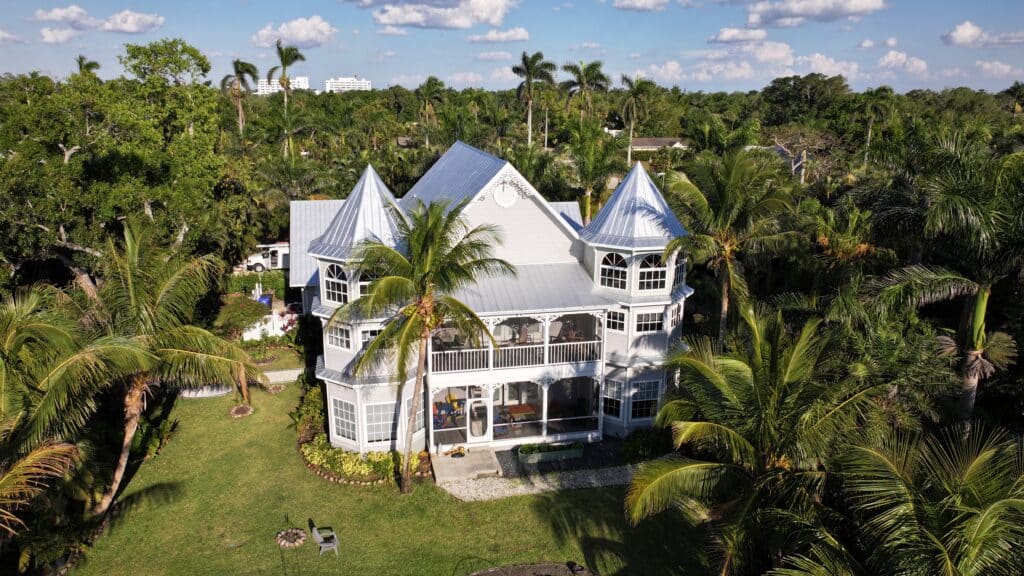

Metal roofs are especially popular in southern states because they’re lightweight, durable, and reflect heat away from the house. If you’re bidding on Florida jobs, it’s worth noting that 5V Crimp meets the Florida Building Code structural requirements with state approval: Min. 26 ga., 24″ wide through fastened roof panel over min. 19/32″ thick plywood deck with fasteners through panel rib (FL #11903.1).
As mentioned, exposed fastener metal roofs have been the go-to for agricultural structures for years. If your business serves farming communities, you’ll find exposed fastener roofs everywhere – barns, garages, hen houses, and sheds. The 5VC-5V CRIMP machine can handle these jobs plus most commercial work.
What Can It Do?
The 5VC produces the classic 5V crimp profile in three width options: 21″, 24″, and 24.5″ coverage. It can handle painted steel from thin 30 gauge all the way up to structural 24 gauge. It also runs aluminum (.027″ to .040″) and even copper (16 oz. or 20 oz.), giving you versatility for different applications.
Speed-wise, it runs at about 60 feet per minute – plenty quick for most roofing jobs.
The Nuts and Bolts
The 5VC uses NTM’s Quick-Change Power Pack system that lets you switch between gas (16 HP) or electric motors. It’s hydraulically driven with polyurethane rollers and a hydraulic shear for clean cuts.
Control-wise, the basic 5VC has simple push-button controls, but most contractors upgrade to the optional PLC controller that lets you program panel lengths and quantities, similar to the WAV’s UNIQ system.
Who Needs a 5VC Machine?
The 5VC is perfect for roofing contractors, especially those working in the Southeast, Gulf Coast, or rural areas where 5V crimp panels are common. It’s ideal for:
• Contractors in coastal regions where 5V panels are traditional
• Rural and agricultural contractors working on barns and outbuildings
• New metal roofing businesses looking for an affordable entry point
• Small manufacturers or suppliers wanting to offer metal roofing locally
It’s particularly valuable for re-roofing projects where matching existing panels is important. And since 5V panels are relatively simple to install, having this machine can open up markets that might not go for more complex standing seam systems.
What’s the Investment?
The 5VC is much more budget-friendly than the WAV. The base machine starts at about $67,150 in 2025, including your choice of power pack, one set of forming rollers, and the hydraulic system.
A typical setup with trailer ($18,000), PLC controller ($11,100), and common accessories like reel racks, arbors, and run-out tables will put you in the $96,000-$100,000 range. That’s still a significant investment, but one that many roofing contractors find manageable, especially when they factor in the money saved by making their own panels.
| 5VC-5V Crimp Machine | |
|---|---|
| Profiles produced | 3 profiles (5V crimp panels ~21″, 24″, or 24.5″ wide) for classic 5‑rib roof panels. All are exposed-fastener 5V style. |
| Materials capability | 30 to 24 gauge painted steel; .027″–.040″ painted aluminum; and 16oz–20oz copper. (Steel, aluminum, or copper for various needs.) |
| Max speed | Approximately 60 ft/min (18 m/min). Steady pace sufficient for typical roofing needs. |
| Power sources | Quick-Change Power Pack – choice of 16 HP gas or various electric motors (5–7.5 HP, single or 3‑phase). Can swap power packs. |
| Machine dimensions | Length: ~10′ 5″ (3.2 m) Width: 4′ 10.5″ (1.2 m) Height: 4′ 3″ (1.3 m) with rack (2′ 4″ without) Weight: ~2,200 lbs (1000 kg) |
| Dimensions on trailer | Lenth: On trailer: ~18′ 11″ Width: 7′ 2.5″ Height: 6′ 3″ high (with reel). Weight with trailer: ~4,460 lbs. Towable with standard pickup (tandem axle trailer). |
| Control system | Manual controls (run/jog buttons, limit switch) standard; optional PLC computerized controller available (upgrade). Basic automation can be added as needed. |
| Typical uses | Producing exposed-fastener metal roofing panels (5V crimp) for residential, agricultural, and light commercial roofs. Ideal for re-roofing in coastal and rural areas and affordable new metal roofs. |
| Recommended Users | Roofing contractors (especially in the Southeast/rural markets) and small businesses starting in metal roofing. Great for contractors who want to offer a popular, cost-effective roofing option. |
| Base price | ~$67,150 USD (base machine) – includes power pack (gas or electric), one roller set, hydraulic drive/shear. Ready to run one profile. |
| Equipment full setup cost | With trailer, PLC controller & common add-ons, roughly $96k–$100k USD. Still under six figures for a fully equipped, job-site-ready machine. |
The Lowdown
These two machines couldn’t be more different in purpose, size, and price point, but they both demonstrate NTM’s commitment to specialty market needs.
The WAV is a serious investment for established commercial contractors looking to differentiate with architectural wall panels or take control of their panel production. It’s big, expensive, and built for high-volume commercial work.
The 5VC is much more accessible – a practical investment for roofing contractors who want to offer quality 5V crimp panels without depending on suppliers. It’s particularly valuable in regions where these panels are traditional and in high demand.
Both machines give you the freedom to produce panels on-site, which means better control over quality, timing, and profitability. Whether you’re looking to break into metal wall panels or expand your roofing offerings, these specialty rollformers could be the key to growing your business in 2025 and beyond.
For information about the WAV Wall Panel Machine, the 5VC-5V Crimp Machine, or any NTM machines or accessories, contact us.
