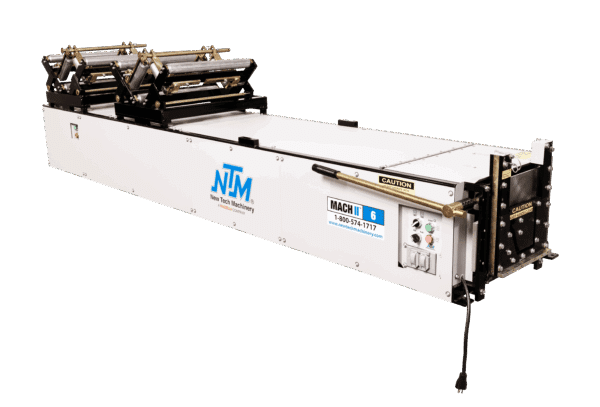

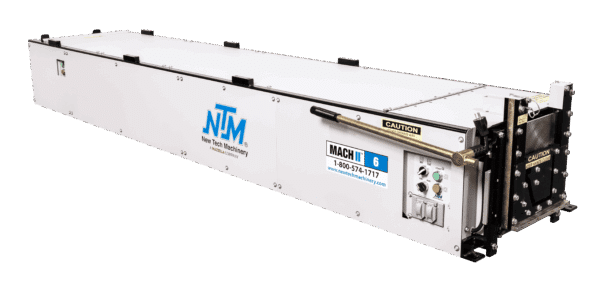

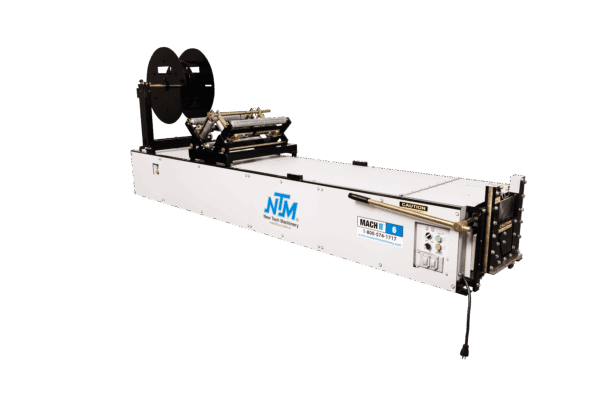

MACH II™ 6" Gutter Machine
MACH II™ 6" Gutter Machine - Image 2
MACH II™ 6" Gutter Machine - Image 3
MACH II™ 6" Gutter Machine - Image 4

MACH II™ 6″ Gutter Machine

Buy Now

6” Gutter Machine — The Original Polyurethane Drive System.

  • Starting at $9,500+ USD, depending on machine configuration.

*Photo includes optional equipment available for an additional cost.

New Tech Machinery (NTM) began designing the first Mach II™ portable seamless gutter machine in 1991 and shipped the very first unit in 1994. More than three decades later, this portable roll-former is still a go-to for contractors who need to run K-style seamless gutters on-site. It’s the most copied machine in the industry and has been an essential part of helping contractors build successful businesses for over 30 years. Also, it’s offered with the industry’s best warranty.

Get a Quote
Category: Tags: ,

30+ Years of Proven Performance

Discover why the MACH II™ 6″ has been the industry's most trusted and copied gutter machine since 1994.

Related Resources

MACH II™ 6″ Gutter Machine Details:

Standard Features

  • Polyurethane Drive Rollers
  • Two 360° Rotatable Reel Stands for Easy Coil Loading
  • Stainless Steel Forming Rollers
  • Electric Motor 3/4 HP, 110 VAC, 60 Hz, 1 Ph, 11 AMPs
  • Push Button RUN/JOG Controls at Entry & Exit Ends
  • Welded Tubular Steel Frame
  • Forward Pulling, Easy Cut Shear for Accuracy
  • Industry’s Best Warranty
  • Power Interruption Safety Circuit
  • Easy Lift Reels

Warranties & Patents

Warranty:

New Tech Machinery provides a limited three-year part and NTM in-house labor warranty. Read more about our warranty here.

Patents:

  • U.S. PATENT NO. 5,394,722
  • U.S. PATENT NO. 5,740,687

MACH II™ 6″ Gutter Machine Footprint & Specifications:

Footprint:

MACH II Gutter Machine Footprint

Specifications:

5” Gutter Machine

  • Length: 8’ (2.4m)
  • Width: 2’ (.6m)
  • Height: 4’ (1.2m)
  • Weight: 1,000 lbs. (454kg)

6” Gutter Machine

  • Length: 10’ (3.0m)
  • Width: 2’ (.6m) Plus Shear Handle
  • Height: 4’ (1.2m)
  • Weight: 1,250 lbs. (570kg)

5″/6” Gutter Machine

  • Length: 10’ (3.0m)
  • Width: 2’ (.6m) Plus Shear Handle and Extra Shear
  • Height: 4’ (1.2m)
  • Weight: 1,350 lbs. (610kg)

Speed

  • 50 ft./min (15m/min) Approx.

Materials Formed

  • Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (painted, Galvalume, coated galvanized)
  • Painted Aluminum: .019″ to .032″ (.5mm to .8mm)
  • Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)

Shear

  • Manually Powered
  • Hardened Tool Steel Blades & Shear Dies

Material Width

  • 5” Gutter: 11-3/4” to 12-3/8” (300mm to 315mm)
  • 6” Gutter: 15” (380mm)

Drive

  • Electrically Driven Polyurethane Rollers

Maximum Coil Weight

  • Recommended maximum coil weight is 1000 lbs. for the reel and 400 lbs. for the cradle

Maximum Outside Diameter for Coil

  • 30″ (762mm) on reel

MACH II™ 6″ Gutter Machine Upgrades:
