SSHTM MultiPro Roof Panel Machine

Light Commercial / Residential Multi-Profile Roof Panel Machine



  • The high performance solution to your residential and light commercial needs.
  • Seven available panel profiles in variable widths, multiple gauges and various material types
  • Industry's best warranty!

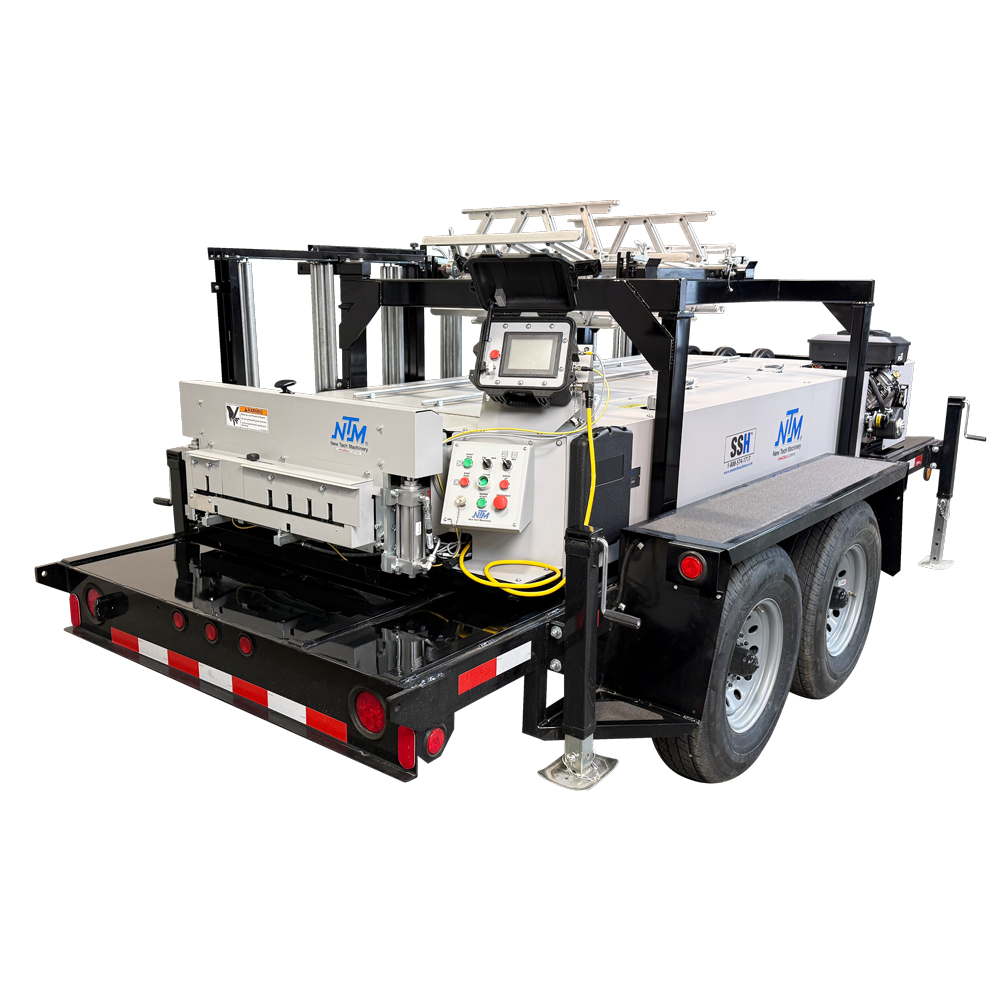

New Tech Machinery SSH Roof Panel Machine

  • Polyurethane Drive Rollers
  • Powder-Coated Frame & Covers
  • Power Interruption Safety Circuit
  • Runs Up to 24 Gauge Steel
  • Hydraulic Drive & Shear
  • Length Control Limit Switch
  • Welded Tubular Steel Frame
  • Push Button RUN/JOG Controls
  • UL Rated Panels (Must Be Certified by UL for Recognition)
  • Industry’s Best Warranty
  • Included: PLC Batch / Length Computerized Controller
  • Choice of: Quick-ChangeTM Profile Roller System with Shear Dies
  • Choice of: Quick-ChangeTM Power-Pack (Gas or Electric)
  • Choice of: One Pair of Bead, Pencil, Striation or V-Rib Rollers
SSH Panel Machines
  • Length: 12’ 10” (3.9m)
  • Width: 5’ (1.5m)
  • Height with Over Head Rack: 4’ 3” (1.3m)
  • Height without Over Head Rack: 2’ 0” (.6m)
  • Weight: 3,725 lbs. (1,700kg)

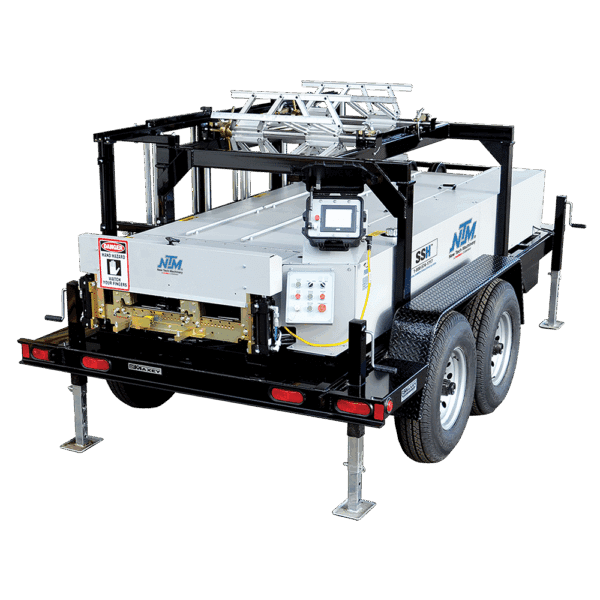

SSH On Trailer
  • Length: 17’ 6” (5.3m)
  • Width: 7’ (2.1m)
  • Height with Reel: 6’ 3” (1.9m)
  • Weight: 5,275 lbs. (2,400kg)



Coil Widths
  • 14” to 24” (355mm to 610mm)



Finished Panel Widths
  • 10” to 20” (254mm to 508mm) - Note: Variable Depending on Panel Profile



Materials Formed
  • Painted Steel: 30 ga. to 24 ga. (.3mm to .6mm) (coated galvanized, aluminized)
  • Painted Aluminum: .027” to .040” (.7mm to 1.0mm)
  • Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)



Shear
  • Hydraulically Powered, Infinitely Adjustable, Hardened Tool Steel Blades & Shear Dies
  • Panel Recognition Safety System



Drive
  • Hydraulically Driven via Chain, Sprocket & Gear



Speed
  • 60 ft./min (18.3m/min) Approx.
SSH Profiles Cutsheet

SSH100 * †

NTM SSH100 Profile

1” high x 1/2“ wide (25.4mm x 12.7mm) mechanically seamed panel. Includes a hand seamer and clip relief.


SSH150 * †

NTM SSH150 Profile

1-1/2” high x 1/2” wide (38.1mm x 12.7mm) mechanically seamed panel. Includes a hand seamer and clip relief.


SSH450 *

NTM SSH450 Profile

1-1/2” high x 1/4” wide (38.1mm x 6.4mm) snap clip panel / snap lock panel. Includes clip relief rollers.


SSH450SL *

NTM SSH450SL Profile

1-1/2” high x 1/4” wide (38.1mm x 6.4mm) snap clip panel / snap lock panel. Includes clip relief rollers.


FFH100

NTM FFH100 Profile

1“ snap seam (25.4mm) with slotted fastener flange for clipless installation. Includes clip relief rollers and automatic “no chip” rotary slotter.


FFH150

NTM FFH150 Profile

1-1/2” snap seam (38.1 mm) with slotted fastener flange for clipless installation. Includes clip relief rollers and automatic “no chip” rotary slotter.


T-Panel

NTM T-Panel Profile

1/2” to 1-1/2” high (12.7mm to 38.1mm)

  • Leg height is profile dependent.
  • Most panel profiles can produce a T-Panel.

UL Designation
These field formed panels have demonstrated compliance with UL580, Class 90 when a UL certificate accompanies the machine producing panel.



* Can make T-Panel
† Suitable for Zinc
All roller systems include shear dies and clip relief rollers.

  • SSH100, SSH150 and SSH450/450SL Roller Systems all use identical left side roller sets.
  • FFH100 and FFH150 also share identical left side roller sets.

If you purchase or own one of these roller systems, you can add any of the other right side systems at a reduced price!




Clip Relief

NTM Clip Relief


Bead Ribs - Standard or Wide

NTM Bead Ribs


Pencil Ribs - Small or Large

NTM Pencil Ribs


V-Ribs - Small or Large

NTM V-Ribs


Striation Ribs

NTM Striation Ribs

ROS-10 – Variable Height Run Out Table - 10-Foot (3m) Sections

ROS-10 Run Out Table

Conveyer style table attaches to shear and is used to support panel as it exits the machine. Two individually adjustable legs allow variation in height from 25” to 43”. Available in connectable 10 ft. sections.


TR12 Trailer

TR12 Trailer

NATM Compliant, 12,000 lb. tandem axle trailer used for towing any NTM roofing machine directly to the jobsite. Equipped with crane lifting eyes, 4 drop-foot jack stands and electric brakes w/ breakaway kit.


DR1 – Dual Overhead Reel Stand

DR1 – Dual Overhead Reel Stand

Machine mount overhead stand for holding up to two Expandable Arbors with coil or two De-coiler Reels with coil for a combined total capacity of 6,000 lbs.


DR01-EX – Expandable Arbor

DR01-EX – Expandable Arbor

Used for holding coil. This arbor expands to the inside diameter of the coil for faster, easier loading. Can accommodate coils with 16” to 20” ID. Capacity is 3,000 lbs. when used with Dual Overhead Reel Stand or Single Free Standing De-Coiler.


QCPP-E & QCPP-G – Quick Change Power Pack

QCPP-E & QCPP-G – Quick Change Power Pack

Used to quickly field convert machine from gas engine to electric motor and back again as needed.


NTM100 – Computer Control

NTM100 – Computer Control

The NTM 100 comes standard with the new WAV wall panel machine, and is currently available for the SSQ and SSH roof panel machines.



Improved Look & Operation:
  • 12.1” color touch-screen
  • Increased memory – program up to 600 different lengths
  • Integrated coil length calculator
  • Help & Error Screens
  • Download from Applicad, TopView or Excel
  • Quickly transfer cut lists from a USB drive
  • Removable, water resistant, suitcase style housing
  • Quick / Easy entry from home screen
  • Adjustable articulating arm
  • Rotate, raise or lower controller for your perfect view

FSD1 – Single Free Standing De-Coiler

FSD1 – Single Free Standing De-Coiler

A Remote stand used at the entry end of the machine to hold one Expandable Arbor with coil or one De-Coiler Reel with coil. Total capacity 3,000 lbs.Shown with optional DR01-EX.


HS-1 – Hand Seamer

HS-1 – Hand Seamer

Hand held device used to single-lock mechanically seamed panels.


RR1 thru RR6 – Pencil, Bead, V and Striation Rollers

RR1 thru RR6 – Pencil, Bead, V and Striation Rollers

A variety of ribs used to aesthetically enhance standing seam panels.


CVR-SSH – Machine Cover

CVR-SSH – Machine Cover

Machine Cover K-Tex synthetic canvas material, form fitted to body of machine.


EZE CHANGETM Roller System

Forming stations mounted on aluminum rails used to form various panel profiles. Includes shear dies.


HMT – Hot Melt Sealant Pump Interface

RRF – Frame Assembly

Used to mount additional rib or striation rollers making changeovers fast and simple.


GAS 16 Hp Electric Start Engine

ELEC1 7.5 Hp, 220VAC, 60Hz, 3Ph, 18Amps

ELEC3 5 Hp, 380VAC, 50 Hz, 3Ph, 8 Amps

ELEC4 7.5 Hp, 460VAC, 60 Hz, 3Ph, 9 Amps

ELEC5 5 Hp, 220VAC, 50 Hz, 1Ph, 21 Amps

ELEC6 5 Hp, 220VAC, 60 Hz, 1Ph, 20 Amps



Warranty:
  • Three years parts (including electrical) / Three years labor
  • Limited lifetime separation on drive rollers
  • Limited lifetime on stainless steel forming rollers
Patents:
  • U.S. PATENT NO. 6,772,616
