BG7TM Box Gutter Machine


Home / Machines / Gutter Machines / BG7 Box Gutter Machine


BG7TM Box Gutter Machines

7” Commercial Box Gutter Machine



  • Two Profiles ... One Machine!
  • The solution to your industrial gutter needs!
  • Industry's best warranty!

New Tech Machinery BG7 Commercial Box Gutter Machine

  • Polyurethane Drive Rollers
  • Length Control Limit Switch
  • Hydraulic Drive & Shear
  • Power Interruption Safety Circuit
  • Push Button RUN/JOG Controls at Entry & Exit Ends
  • Welded Tubular Steel Frame
  • Runs up to 22 Ga. Material
  • Gutter Recognition Safety System
  • Choice of: Quick-Change Power-PackTM - Gas or Electric
  • Industry’s Best Warranty
BG7 Gutter Machine
  • Length: 17’ 10” (5.4m)
  • Width: 4’ (1.2m)
  • Height with Over Head Rack: 4’ 3” (1.3m)
  • Height without Over Head Rack: 2’ 8” (.8m)
  • Weight: 3,000 lbs. (1,370kg)

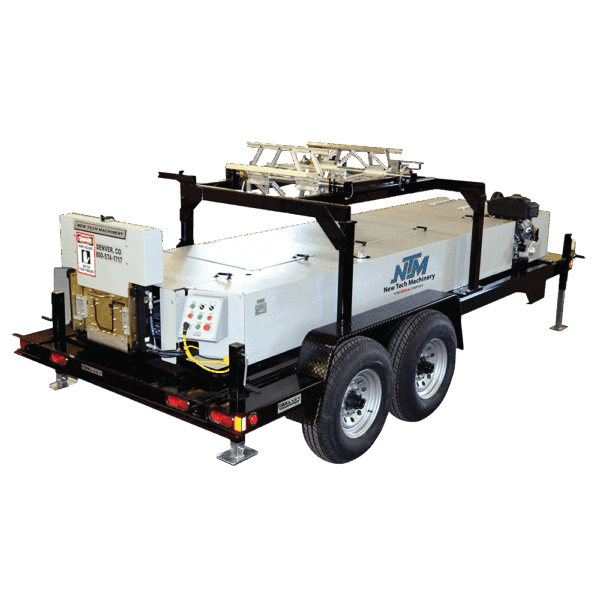

BG7 On Trailer
  • Length: 21’ (6.4m)
  • Width: 7’ (2.1m)
  • Height with Reel: 6’ 3” (1.9m)
  • Weight: 5,200 lbs. (2,370kg)



Coil Width
  • 20” (508mm) - Straight Back, HK7 Hook



Materials Formed
  • Painted Steel: 26 ga. to 22 ga. (.4mm to .8mm) (coated galvanized, aluminized)
  • Painted Aluminum: .032” to .050” (.8mm to 1.3mm)
  • Copper: 20 oz. to 24 oz. 3/4 Hard (.7mm to .8mm)



Shear
  • Hydraulically Powered, Hardened Tool Steel Blades & Shear Dies
  • Gutter Recognition Safety System



Drive
  • Hydraulically Driven Polyurethane Rollers



Speed
  • 60 ft./min (18m/min) Approx.
ROS-10 – Variable Height Run Out Table - 10-Foot (3m) Sections

ROS-10 Run Out Table

Conveyer style table attaches to shear and is used to support panel as it exits the machine. Two individually adjustable legs allow variation in height from 25” to 43”. Available in connectable 10 ft. sections.


TR12L Trailer

TR12L Trailer

NATM Compliant, 12,000 lb. tandem axle trailer used for towing any NTM roofing machine directly to the jobsite. Equipped with crane lifting eyes, 4 drop-foot jack stands and electric brakes w/ breakaway kit.


DR01-EX – Expandable Arbor

DR01-EX – Expandable Arbor

Used for holding coil. This arbor expands to the inside diameter of the coil for faster, easier loading. Can accommodate coils with 16” to 20” ID. Capacity is 3,000 lbs. when used with Dual Overhead Reel Stand or Single Free Standing De-Coiler.


QCPP-E & QCPP-G – Quick Change Power Pack

QCPP-E & QCPP-G – Quick Change Power Pack

Used to quickly field convert machine from gas engine to electric motor and back again as needed.


PLC07 – Computer Control

PLC07 – Computer Control

New Tech Machinery’s new computer controller was developed after years of customer feedback. The controller integrates a myriad of options and features that end users have requested. Operation of the controller is designed for simplicity, with help and error screens to assist the user.

  • Water Resistant Carrying Case
  • Easy Touch Screen Operation with Adjustable Brightness
  • Program up to 99 Jobs or Lengths
  • Calibrate on the Fly
  • Calibrate using a part run from a programmed job to save coil
  • Password protection
  • Separate supervisor and user permissions to track machine and coil usage
  • Track Material
  • Totalizing counter with password protected reset
  • Track 3 separate coils differentiated by color with password protection capability
  • Integrated Coil Length Calculator
  • Measure the coil dimensions and calculate the approximate length
  • Auxiliary Shearing
  • Help and Error Screens
  • See Video

NTM100 – Computer Control

NTM100 – Computer Control

The NTM 100 comes standard with the new WAV wall panel machine, and is currently available for the SSQ and SSH roof panel machines.



Improved Look & Operation:
  • 12.1” color touch-screen
  • Increased memory – program up to 600 different lengths
  • Integrated coil length calculator
  • Help & Error Screens
  • Download from Applicad, TopView or Excel
  • Quickly transfer cut lists from a USB drive
  • Removable, water resistant, suitcase style housing
  • Quick / Easy entry from home screen
  • Adjustable articulating arm
  • Rotate, raise or lower controller for your perfect view

CVR-BG7 – Machine Cover

CVR-SSQ – Machine Cover

Machine Cover K-Tex synthetic canvas material, form fitted to body of machine.


GAS 16 Hp Electric Start Engine

ELEC1 7.5 Hp, 220VAC, 60Hz, 3Ph, 18Amps

ELEC3 5 Hp, 380VAC, 50 Hz, 3Ph, 8 Amps

ELEC4 7.5 Hp, 460VAC, 60 Hz, 3Ph, 9 Amps

ELEC5 5 Hp, 220VAC, 50 Hz, 1Ph, 21 Amps

ELEC6 5 Hp, 220VAC, 60 Hz, 1Ph, 20 Amps



Warranty:
  • Three years parts (including electrical) / Three years labor
  • Limited lifetime separation on drive rollers
  • Limited lifetime on stainless steel forming rollers



Patents:
  • U.S. PATENT NO. 5,394,722
